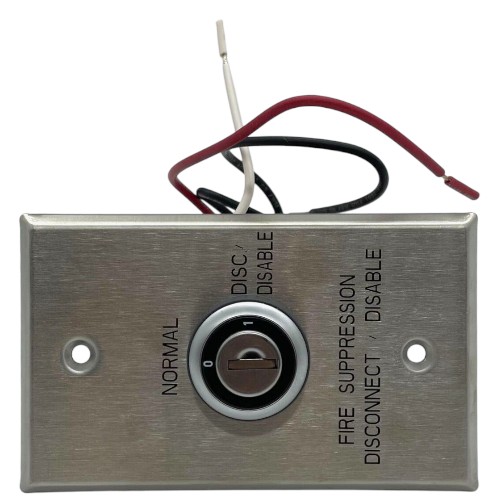

The Simplex 2080-9069 is a flush-mount maintenance disconnect switch for Simplex fire suppression releasing appliance circuits (RACs).
First, the switch provides a visible, secure disconnect for servicing a RAC. Then it uses a maintained-position keyswitch where the key removes only in the normal position. As a result, the switch cannot be left in the disabled position by accident.
How the Simplex 2080-9069 Operates
In the disabled position, the switch opens the connection to the output circuit. In addition, it places a 16.2 kΩ resistor across the input circuit. Therefore, the host panel reports a supervisory condition while the RAC is offline.
This 2080-9069 model is the version without a disconnect indicator lamp.
Mounting
Flush mounting requires a standard single-gang box. For surface mount or a lamp option, see the 2080-9059, 2080-9060, and 2080-9070 siblings in this family.
Specifications
- Function: maintenance disconnect for Fire Suppression Releasing Appliance Circuits
- Mounting: flush, standard single-gang box
- Indicator lamp: none on this model
- Keyswitch: key removable only in normal position
- Supervisory behavior in disabled position: opens output, places 16.2 kΩ across input
Order or Get Application Help
Since 2002, Life Safety Consultants has supplied Simplex suppression-related parts. To order the Simplex 2080-9069 or pick the right maintenance switch variant for your panel, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.65 lbs |
|---|---|
| Dimensions | 6 × 5.75 × 6.5 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Battery |
