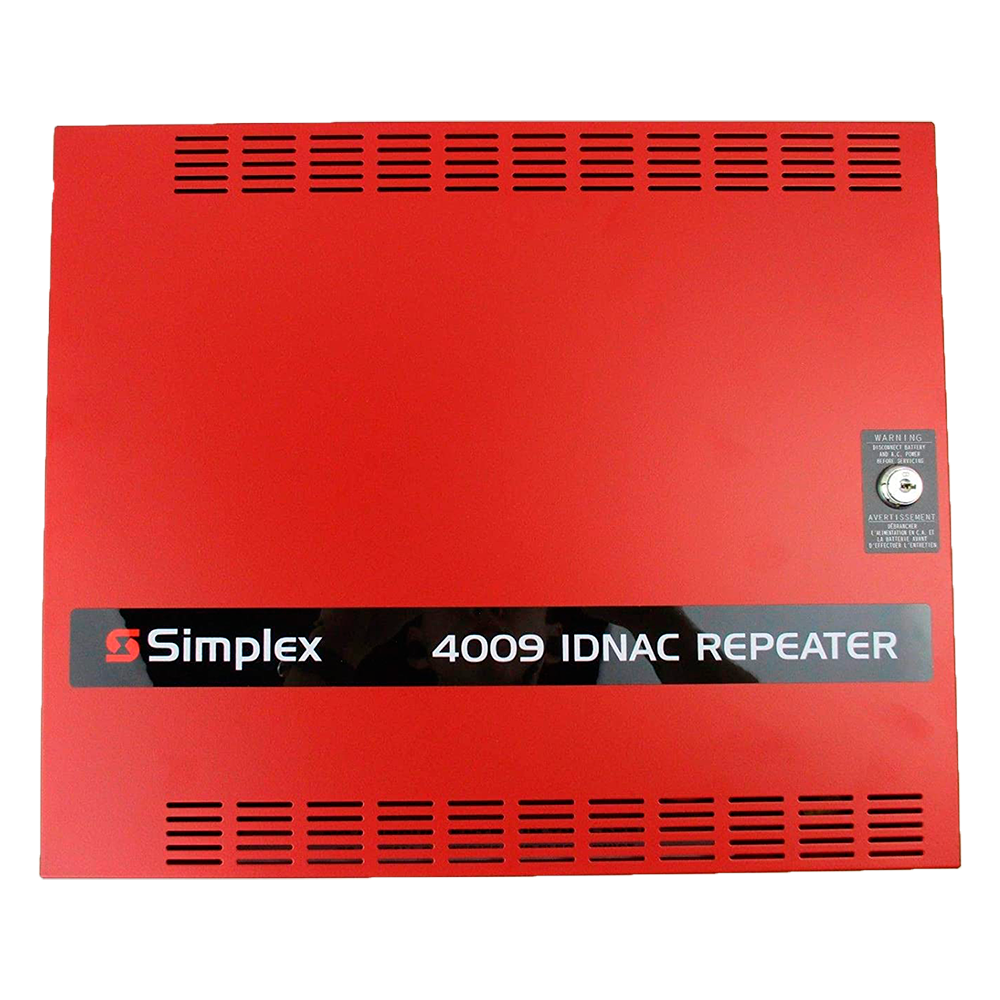

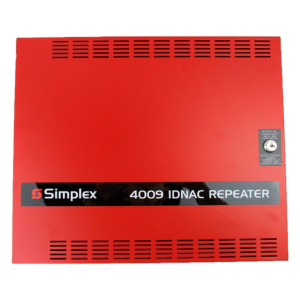

The Simplex 4009-9602 is a 4009 IDNAC Repeater in a red cabinet. It extends the wiring distance of an IDNAC signaling line circuit on TrueAlertES addressable notification systems.
First, the repeater accepts 120/240 VAC, 50/60 Hz input with auto-select. Then it regenerates the IDNAC SLC and delivers up to 3 A of output power. In addition, it provides a 200 mA auxiliary output and an on-board battery charger. As a result, the wiring distance supported by an Extended Power Supply (EPS or EPS+) doubles.
The repeater wires in either Class A or Class B configuration. Therefore, it adapts to the host system’s survivability requirements. Furthermore, the unit needs one IDNAC SLC address to operate.
Simplex 4009-9602 Topology
One repeater can be wired in series with the host SLC. Alternatively, up to five repeaters can be connected in parallel.
Key Specifications
- IDNAC SLC output: 3 A max — 29 VDC nominal with AC present or in alarm, 24 VDC standby on battery
- Auxiliary output: 0.2 A max @ 29 V
- AC input: 120/240 VAC, 50/60 Hz auto-select
- Class A or Class B IDNAC wiring
- Cabinet: 16.5 in W × 13.75 in H × 4.5 in D
- Red cabinet (4009-9602); Platinum version is the 4009-9601
- Compatible with FACPs using the Extended Power Supply (EPS / EPS+)
Order or Get Application Help
Since 2002, Life Safety Consultants has supplied genuine Simplex 4009 equipment. To order the Simplex 4009-9602 or confirm fit for your panel, call 1-888-557-0558. Also, you can email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 16.05 lbs |
|---|---|
| Dimensions | 20.5 × 17.5 × 7.9 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Replacement Part |
