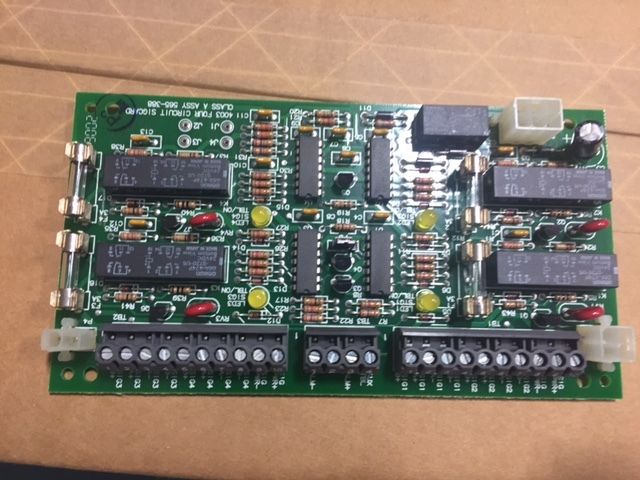

Simplex (565-388) 4 Circuit Class A Signal Card

The Simplex 565-388 is a 4-circuit Class A signal card used to add or replace notification appliance circuits on compatible Simplex fire alarm control panels. As a result, you get four supervised Class A (Style Z) NAC outputs from a single board.

Specifically, this card is paired with Simplex 4003 voice control panels and 4009 NAC power extenders in commercial installations. In addition, it is a common spare for facilities still operating legacy Simplex hardware.

What the Simplex 565-388 Does in the Panel

First, the card divides the panel’s NAC output capacity into four independent, supervised circuits. Then, each circuit can be wired Class A for return-path supervision. Therefore, a single open or short on the loop does not silence downstream appliances on the same circuit.

This makes the 565-388 a workhorse board for buildings whose authority having jurisdiction (AHJ) requires Class A notification wiring. Also, it is a typical replacement when a damaged board needs to be swapped during a service call.

Key Features

• Four notification appliance circuits on a single board
• Class A (Style Z) supervised circuit configuration
• Designed for Simplex 4003 voice control panels and 4009 NAC power extenders
• Direct replacement for the original-equipment Simplex 565-388 card

Specifications

• Manufacturer: Simplex
• Part number: 565-388
• Function: 4-circuit Class A signal card
• Compatible panels: Simplex 4003 voice control panel; 4009 NAC power extender

Order from Life Safety Consultants

The 565-388 is a long-tail spare. Furthermore, when an older Simplex 4003 system needs another Class A NAC bank, it is the right board to install. We stock these alongside legacy Simplex modules, displays, and replacement panel cards.

For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
