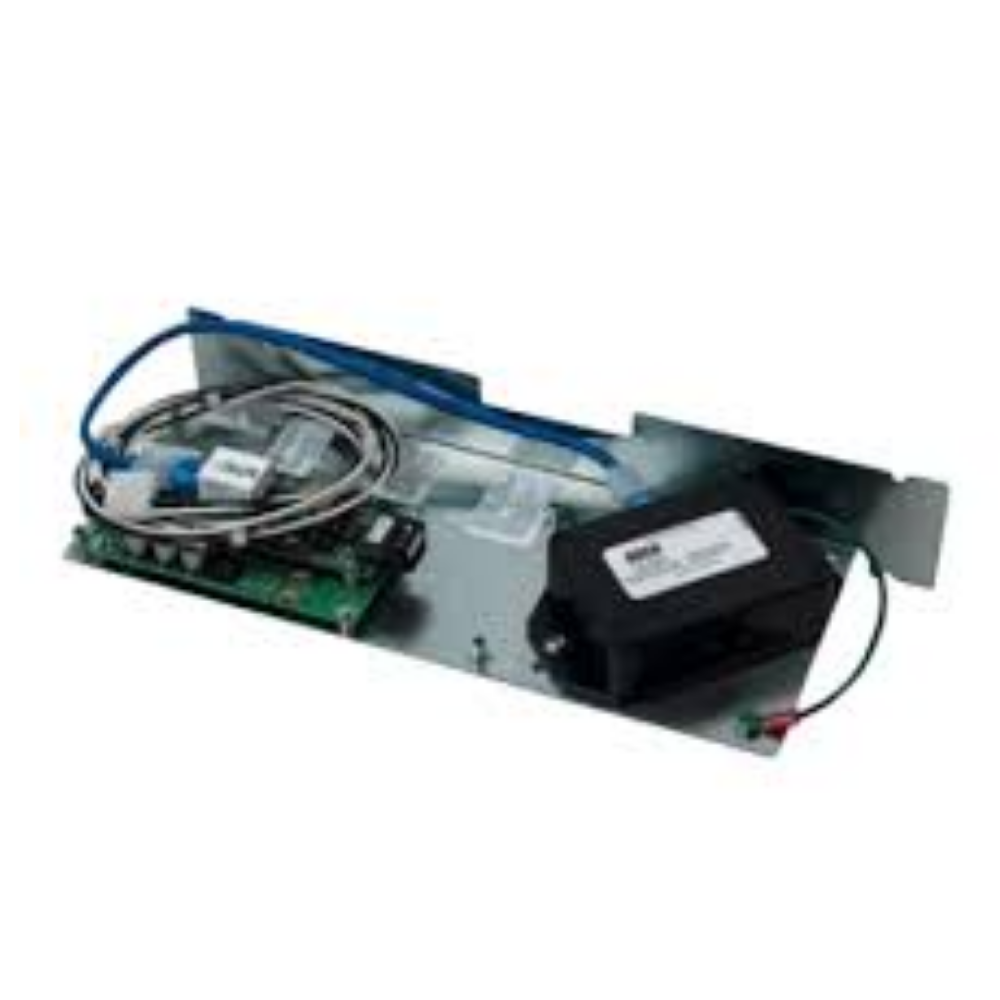

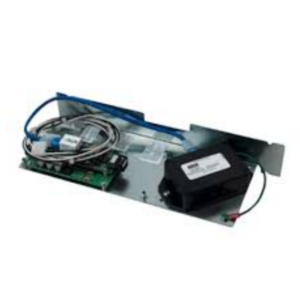

The Simplex 4100-6069 is a BACpac Ethernet module for Simplex fire alarm panels. It shares fire system status with building automation systems over a network. As a result, facility software can monitor the panel in real time.
Modern buildings tie many systems together. However, fire and building automation often speak different languages. The BACpac module bridges them. Specifically, it supports BACnet or Modbus communications over an Ethernet LAN.
Simplex 4100-6069 Specifications
The module installs in a single 2-inch legacy card slot. It draws power from the panel at 24 VDC. In addition, it operates over a range of 9 to 30 VDC. Its maximum current draw is 123 mA. Therefore, it adds network connectivity without a separate supply.
- BACpac Ethernet portal module for Simplex 4100-series panels
- Compatible with 4100ES, 4100U, 4100/4100+, and 4120 systems
- Supports BACnet or Modbus protocol over an Ethernet LAN
- Shares fire alarm status with building automation systems
- Installs in a single 2-inch legacy card slot
- Powered by the panel at 24 VDC (range 9-30 VDC), 123 mA max
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.65 lbs |
|---|---|
| Dimensions | 12.7 × 9.6 × 5.2 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Module |
