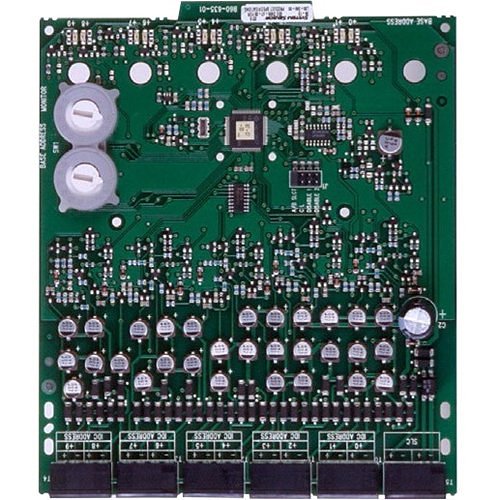

The Silent Knight SK-MON-10 is a robust 10-input monitor module engineered for comprehensive fire alarm system integration in commercial and institutional environments. Designed to expand the monitoring capabilities of addressable fire alarm panels, this module provides critical input supervision for multiple detection and initiating device circuits across complex building infrastructures.
Professional fire alarm technicians rely on the SK-MON-10 to seamlessly interface conventional circuit devices with modern addressable fire alarm control systems. Its advanced circuit monitoring capabilities allow for precise zone identification, supervised input tracking, and immediate alarm signal transmission, ensuring comprehensive life safety coverage in facilities ranging from office complexes and healthcare facilities to educational institutions and industrial environments.
Key Features
- Compatible with Silent Knight addressable fire alarm panels and most mainstream fire alarm control platforms
- Ten individually supervised input circuits with configurable device type recognition
- High-reliability electronic supervision with short-circuit and open-circuit fault detection
- Low standby current consumption: Less than 1.0mA per module
- NFPA 72 compliant circuit monitoring with programmable alarm response configurations
- UL 864 listed for comprehensive fire alarm system integration
Technical Specifications
- Operating Voltage: 9-16 VDC
- Temperature Range: 32°F to 120°F (0°C to 49°C)
- Relative Humidity: 10% to 93% non-condensing
- Mounting: Standard electrical backbox or panel-mount configuration
- Dimensions: 6.5″ x 4.5″ x 1.75″
- Regulatory Compliance: UL 268, UL 864, NFPA 72
Ideal for retrofit and new construction applications, the SK-MON-10 provides fire alarm professionals with a versatile, reliable input monitoring solution for complex life safety systems. Its modular design facilitates straightforward installation and integration with existing fire alarm infrastructure, making it a preferred choice for commercial fire protection professionals.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 1.3 × 5.8 × 46.8 in |
| Condition | New |
| Manufacturers | Silent Knight |
| Part Type | Photoelectric Smoke Detector |
