SPACE AGE (T32-DG) Dg Series 32 Volt Terminal Spd

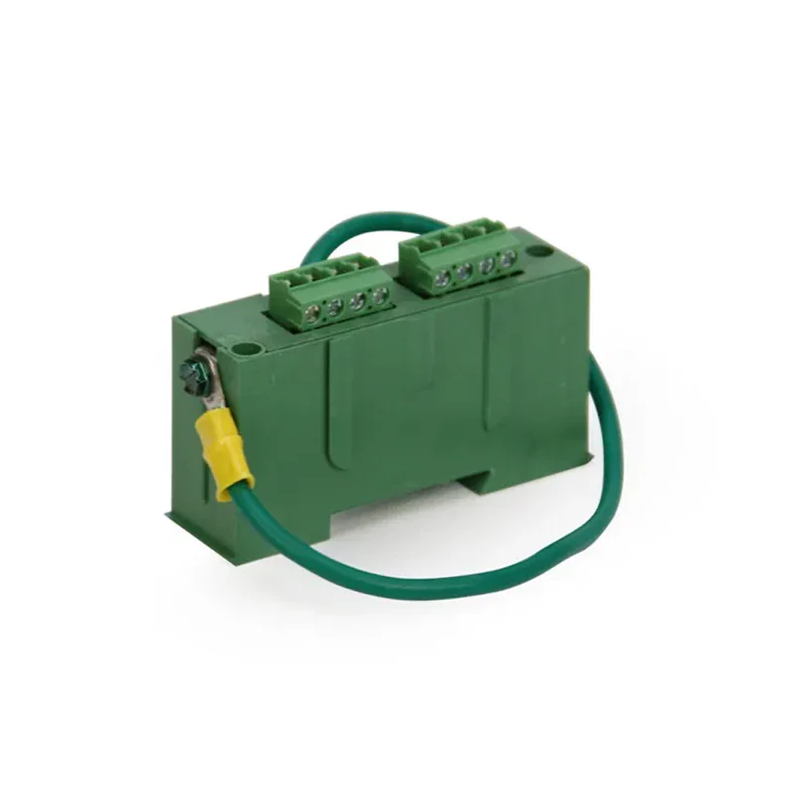

The Space Age T32-DG is a 32-volt terminal surge protection device (SPD) in Space Age Electronics’ Eclips TDG Series. Specifically, the T32-DG protects low-voltage fire alarm, security, and signaling circuits from transient overvoltage events. It uses a combination of Gas Discharge Tubes (GDT) and Silicon Avalanche Diodes (SAD).

First, the GDT handles the bulk of the surge energy. Then the SAD clamps the residual voltage to a level safe for downstream electronics. As a result, the protected circuit sees a clean, low-voltage signal even during nearby lightning strikes or large switching transients. Therefore, panel inputs remain within their safe operating range.

Why specifiers choose the Space Age T32-DG

The TDG Series is fully scalable and field-replaceable. In addition, the modules slide together so installers can build the protection footprint they need on one panel screw mount, snap track, or DIN rail. Furthermore, pluggable screw terminals let a technician swap a damaged module without disturbing field wiring. Also, the line capacitance is very low, which preserves data integrity on multi-drop loops.

Verified specifications

• Rated working voltage: 32 V
• Maximum continuous operating voltage (MCOV): 36 V
• Energy rating: 58 J
• Maximum surge current: 10,000 A
• Clamping response time: less than 1 picosecond
• Circuits protected: 2 circuits, 4 wires
• Suppression technology: GDT + Silicon Avalanche Diode (SAD)
• Mounting: panel screw mount, snap track, or DIN rail
• Termination: pluggable screw terminals
• Design: scalable, slide-together, field-replaceable modules

Common applications

Integrators install the T32-DG on 24 VDC fire alarm SLC loops, NAC circuits, and security data buses where lightning exposure is a concern. For example, rooftop antenna feeds, parking-lot loops, perimeter alarm runs, and outdoor sensor leads all benefit from terminal-level surge protection. Also, the scalable Eclips chassis layout lets a single installation protect multiple circuits from one tidy bay of modules.
