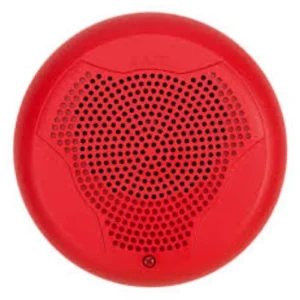

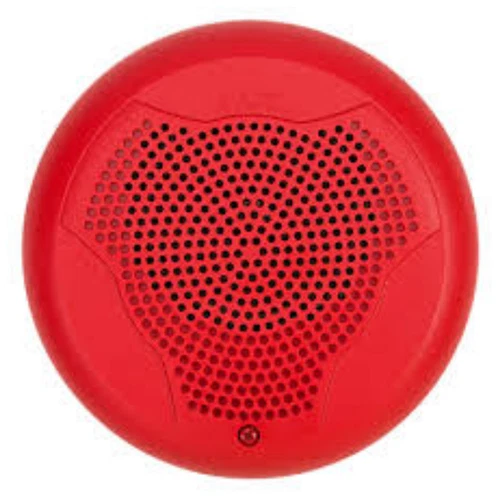

The System Sensor SPCR is a red ceiling-mount fire alarm speaker. It belongs to the SpectrAlert Advance line of audible notification appliances. As a result, it delivers clear voice and tone signaling during emergencies.
A rotary switch sets the power tap in the field. Therefore, installers match output to the space without changing devices. In addition, the same switch selects the operating voltage.
System Sensor SPCR Audio Output
The speaker offers 1/4, 1/2, 1, and 2-watt taps. Also, it operates at 25 or 70.7 Vrms nominal. Then the wide frequency range supports intelligible voice messages.
The SPCR mounts to the ceiling for broad coverage. Furthermore, the red housing identifies it as fire equipment. It integrates with addressable and conventional audio notification systems.
Specifications
- Type: ceiling-mount speaker (speaker only)
- Color: red
- Power taps: 1/4, 1/2, 1, and 2 watts (field-selectable)
- Voltage: 25 or 70.7 Vrms (field-selectable)
- Frequency range: 400 to 4,000 Hz
- Listing: UL 1480 (fire alarm speaker)
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.9 lbs |
|---|---|
| Dimensions | 6 × 7.8 × 9.5 in |
| Condition | New |
| Manufacturers | System Sensor |
| Part Type | Speaker |
