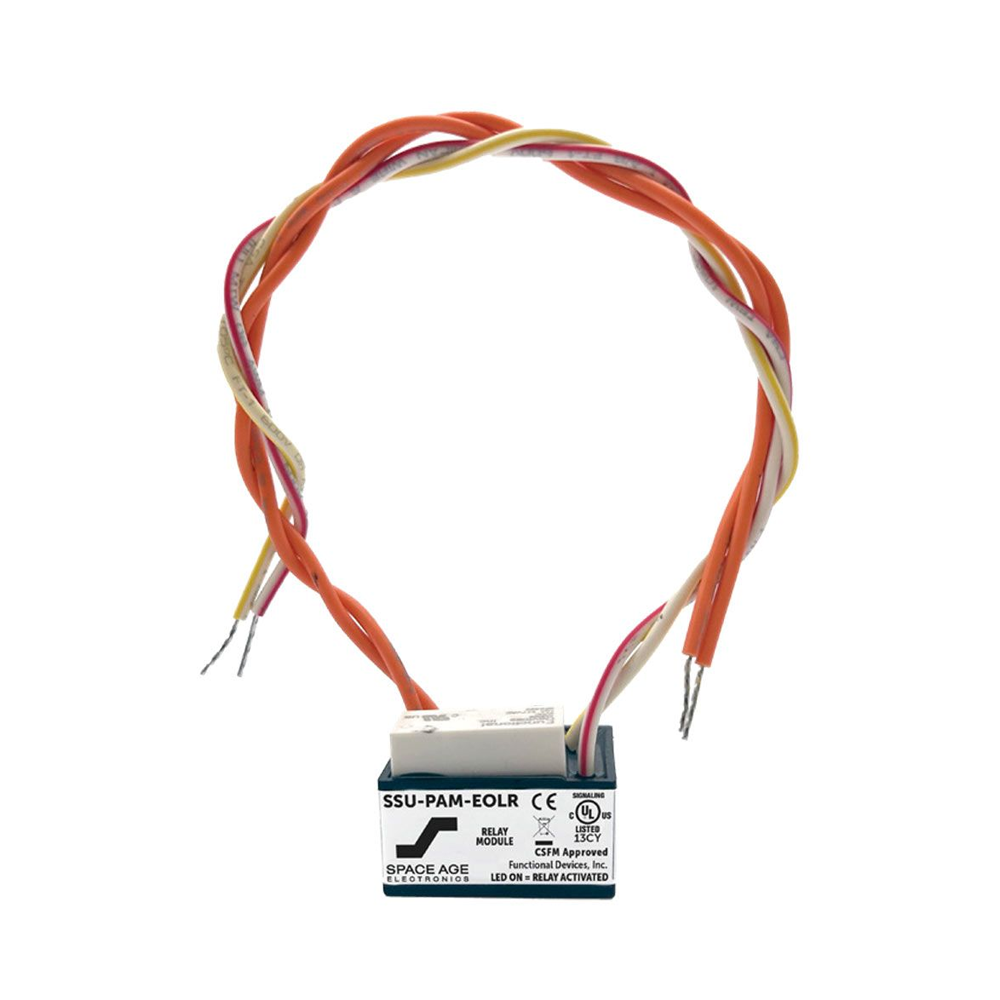

The Space Age SSU-PAM-EOLR is an enclosed, polarized relay with a built-in end-of-line resistor. It operates on 12VDC or 24VDC systems. In addition, it switches up to 3 amps through an SPST contact. Because the relay is polarized, it follows circuit polarity. As a result, it suits supervised notification and control circuits.
What the Space Age SSU-PAM-EOLR does
Supervised fire alarm circuits need end-of-line resistors for monitoring. Therefore, this relay combines switching and end-of-line termination in one device. For example, it can switch an auxiliary load while supervising the line. Furthermore, the enclosed design protects the contacts. Also, the unit carries UL file A77716B.
Key specifications
- Operating voltage: 12VDC / 24VDC
- Contact rating: 3 amps
- Contact configuration: SPST, polarized
- Feature: built-in end-of-line resistor
- Enclosure: enclosed
- Listing: UL (file A77716B)
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.2 lbs |
|---|---|
| Dimensions | 1 × 1 × 1 in |
| Condition | New |
| Manufacturers | Securitron |
| Part Type | Replacement Part |
