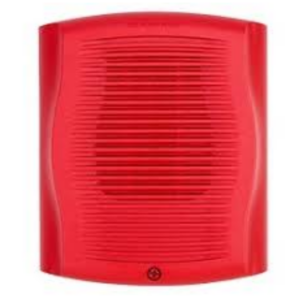

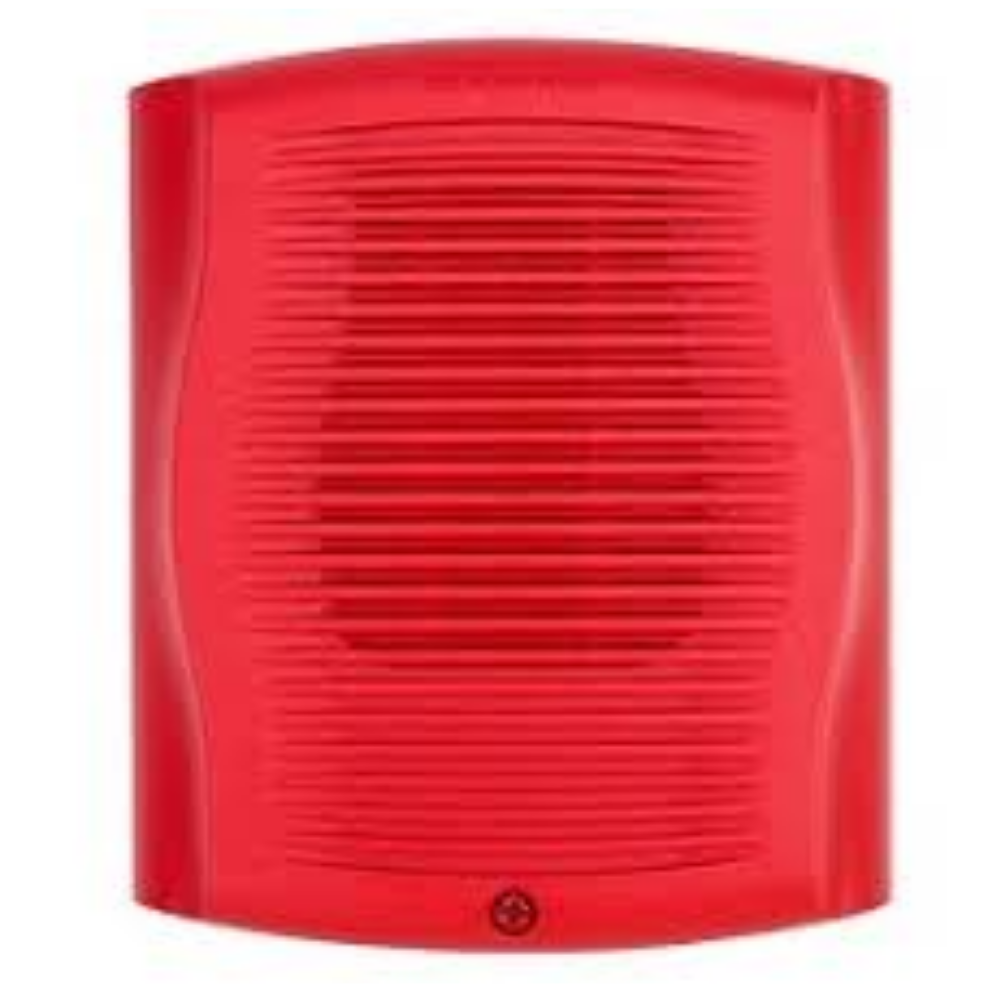

The System Sensor SPR is a red, wall-mount fire alarm speaker. It delivers voice messages and tones during an emergency. This model is a speaker only and does not include a strobe.
The SPR belongs to the SpectrAlert Advance line. Furthermore, a rotary switch sets the voltage and power in the field. As a result, installers can fine-tune output without swapping parts.
System Sensor SPR Speaker Features
First, the speaker operates at 25 or 70.7 Vrms. Then, you select 1/4, 1/2, 1, or 2 watts on the same switch. In addition, the unit reproduces both voice and tone signals clearly.
The SPR covers a frequency range of 400 to 4000 Hz. Also, it operates from 32°F to 120°F. The speaker is listed to UL 1480 and approved for fire protective service.
Mounting and Compatibility
The SPR mounts to a 4 x 4 x 2-1/8 inch back box. Therefore, it fits standard SpectrAlert Advance mounting plates. Use it on compatible fire alarm panels that drive speaker circuits.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.07 lbs |
|---|---|
| Dimensions | 8 × 7 × 7 in |
| Condition | New |
| Manufacturers | System Sensor |
| Part Type | Strobe |
