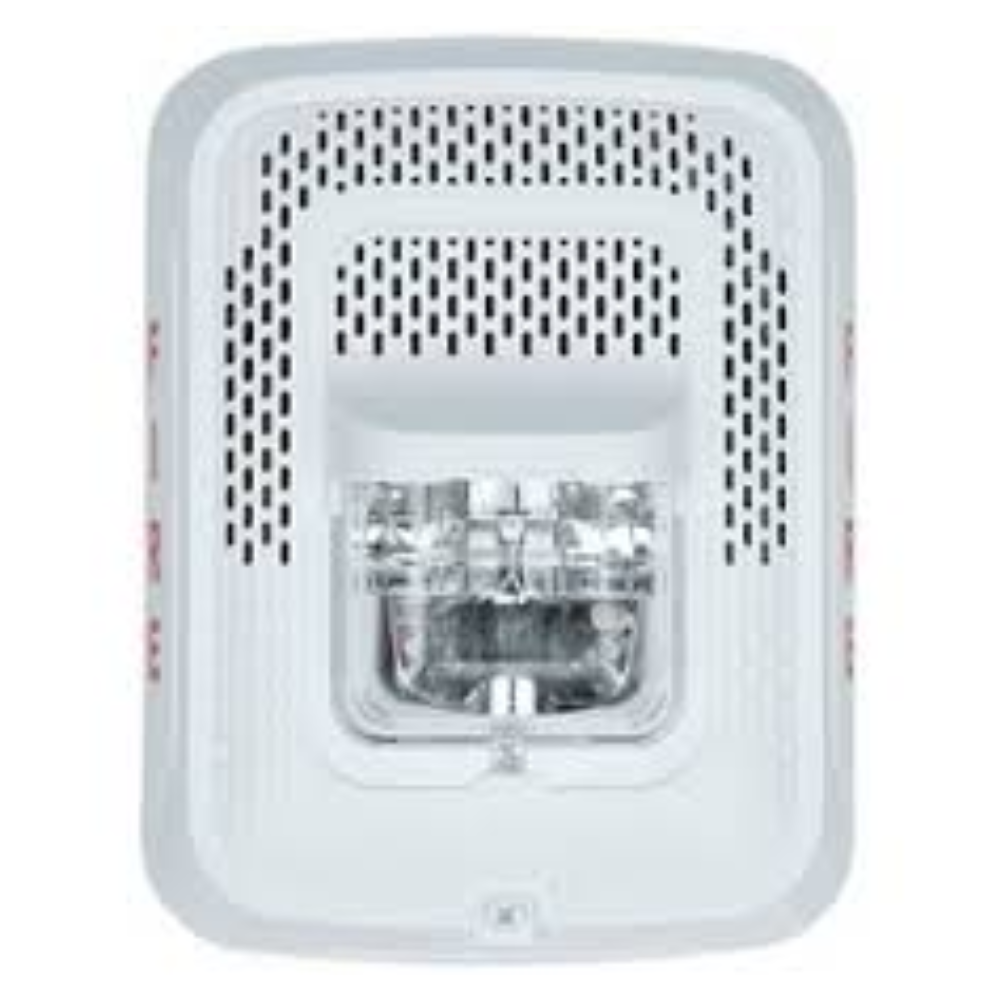

The System Sensor SPSWLED is an indoor wall-mount speaker strobe with LED technology. First, it combines voice and audio output with high-intensity visual signaling. Then, it serves emergency communication and mass notification systems. As a result, one device handles both audible voice and strobe alerting. This white appliance suits offices, schools, healthcare, and similar facilities.
System Sensor SPSWLED speaker and strobe settings
The SPSWLED speaker operates at 25 or 70.7 Vrms, selected by rotary switch. In addition, field-selectable power taps provide 1/4, 1/2, 1, and 2 watts. Its frequency range spans 400 to 4,000 Hz for clear voice reproduction. Then, the LED strobe offers wall candela settings of 15, 30, 75, 95, 110, 135, and 185 cd. Also, DVM diagnostic test points speed voltage checks. Furthermore, the plug-in mounting plate makes installation fast and reduces ground faults.
- Combination speaker and LED strobe, white, wall mount
- Speaker taps: 1/4, 1/2, 1, 2 W at 25 or 70.7 Vrms
- Frequency range: 400 to 4,000 Hz
- Field-selectable wall candela: 15, 30, 75, 95, 110, 135, 185 cd
- UL 1480 (speaker) and UL 1971 (strobe) listed
- DVM test points and plug-in mounting plate
Specifications
- Type: Indoor wall speaker strobe, white
- Strobe nominal voltage: regulated 24 VDC
- Speaker voltage: 25 or 70.7 Vrms
- Operating temperature: 32°F to 120°F (0°C to 49°C)
- Humidity: 10% to 93% non-condensing
- Listings: UL 1480 and UL 1971
The SPSWLED integrates with compatible voice evacuation and notification systems. However, confirm amplifier, synchronization, and strobe power compatibility before ordering. For exterior use, select an outdoor-rated L-Series speaker strobe instead.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8.5 × 7.5 × 5 in |
| Condition | New |
| Manufacturers | System Sensor |
| Part Type | Strobe |
