SYSTEM SENSOR (SWLED) Led Strobe; Wall; White; Fire; 2-Wire

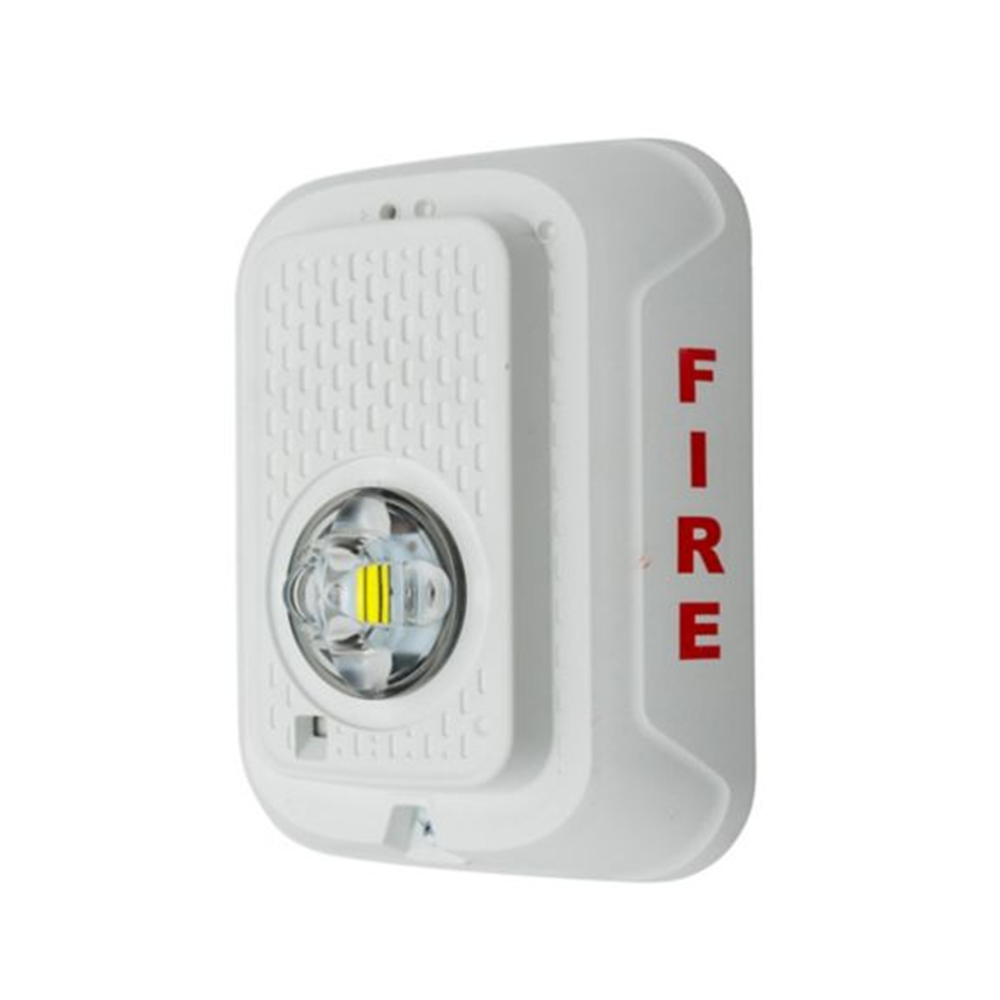

The System Sensor SWLED is a wall-mount white LED strobe for fire alarm notification. First, it provides high-intensity visual alerting during emergencies. Then, its LED design draws less current than legacy xenon strobes. As a result, installers gain more flexibility in NAC and power supply design. This 2-wire strobe fits offices, schools, healthcare, and industrial facilities.

System Sensor SWLED features and candela settings

The SWLED offers field-selectable candela settings through a rotary switch. Specifically, wall settings are 15, 30, 75, 95, 110, 135, and 185 cd. Therefore, a single model serves many room sizes and code targets. In addition, the plug-in mounting plate makes installation fast and foolproof. Also, DVM test points let technicians check voltage without removing the device. Furthermore, the SWLED stays compatible with legacy SpectrAlert, SpectrAlert Advance, and L-Series appliances.

• Field-selectable wall candela: 15, 30, 75, 95, 110, 135, 185 cd
• LED strobe technology for reduced current draw
• Plug-in universal mounting plate with continuity shorting spring
• DVM diagnostic test points on the cover
• UL 1971 listed for fire protective signaling
• Synchronizes via System Sensor Sync protocol or MDL3 module

Specifications

• Type: Wall strobe, white, marked “FIRE,” 2-wire
• Nominal voltage: regulated 24 VDC
• Operating voltage range: 16 to 33 V
• Strobe current draw: 18 mA at 15 cd up to 120 mA at 185 cd
• Operating temperature: 32°F to 120°F (0°C to 49°C)
• Humidity: 10% to 93% non-condensing
• Flash rate: 1 flash per second
• Listing: UL 1971; indoor use

The SWLED integrates with addressable and conventional fire alarm panels through standard NACs. However, confirm synchronization and power supply compatibility before ordering. For exterior installations, select a weatherproof L-Series strobe instead.
