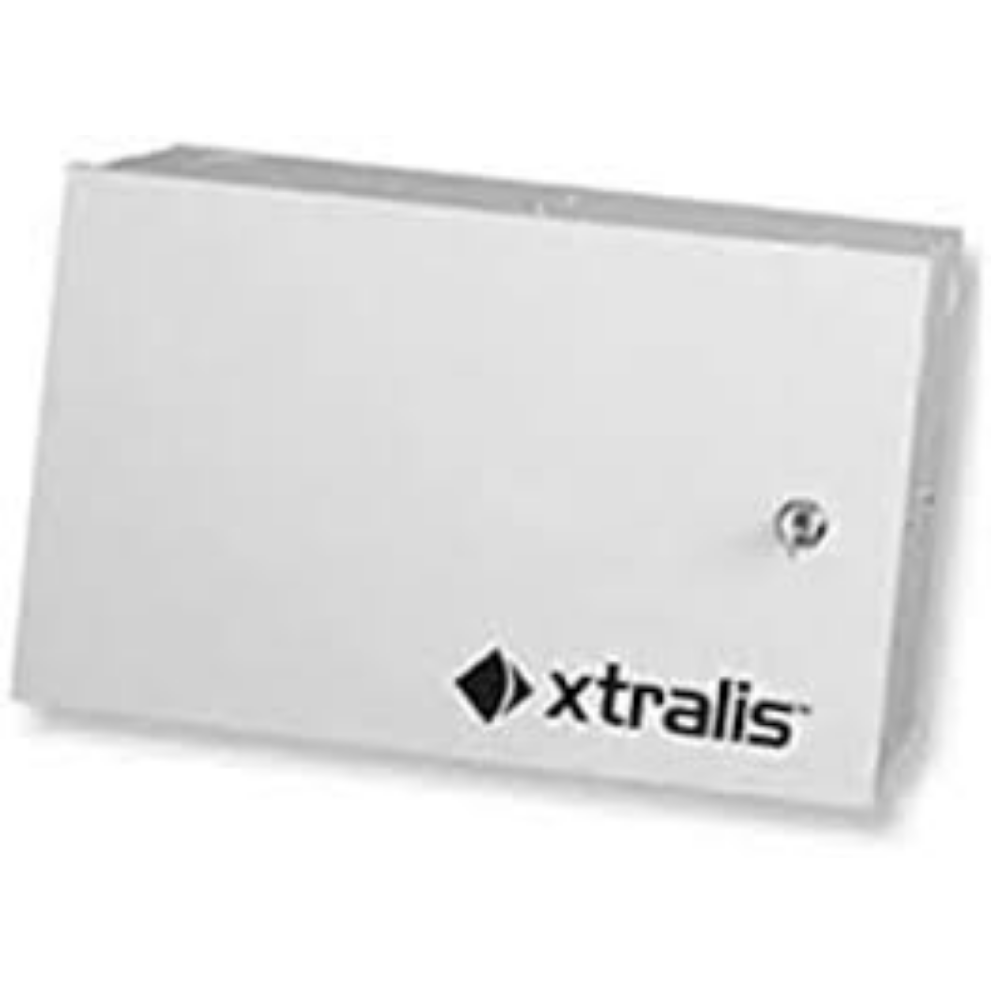

The Vesda VPS-100US-120 is a single-zone power supply with a housing. Specifically, it powers VESDA aspirating smoke detection equipment. First, it takes 120 VAC, 60 Hz input. Then, it delivers a power-limited 24 VDC output.
This supply provides 1.5 A of continuous current at 24 VDC. As a result, it runs a single detection zone reliably. In addition, the output is filtered and electronically regulated. Therefore, connected detectors receive clean, steady power.
Vesda VPS-100US-120 supervision and backup
The unit includes a built-in charger for sealed lead-acid or gel batteries. Furthermore, it supervises AC, low AC (brown-out), and battery conditions. Also, it switches to standby battery automatically when AC fails. For example, the detector keeps running through a power outage.
Key features
- 120 VAC input, power-limited 24 VDC output
- 1.5 A continuous supply current at 24 VDC
- Single-zone unit supplied with a protective housing
- Integrated charger for sealed lead-acid or gel batteries
- AC, brown-out, and battery supervision with automatic battery switchover
- Trouble relay rated 2 A at 30 VDC with NO/NC terminals
- Compatible with VESDA VLP, LaserSCANNER, VLC, and VLF detectors
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 11.95 lbs |
|---|---|
| Dimensions | 15.5 × 10.4 × 5.5 in |
| Condition | New |
| Manufacturers | VESDA |
| Part Type | Power Supply |
