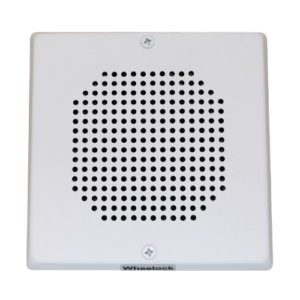

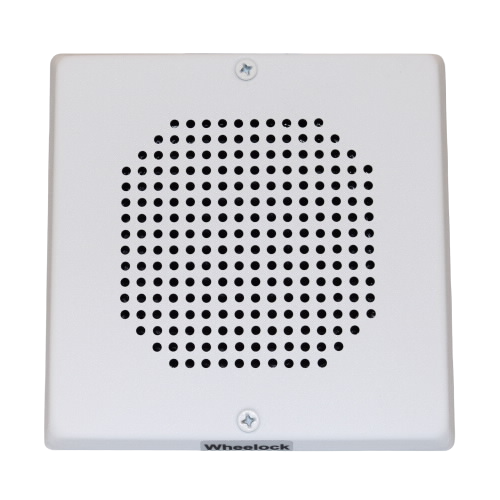

Wheelock E70-W Wall Speaker
The Wheelock E70-W is a low-profile wall speaker for fire alarm and emergency voice systems. It reproduces voice messages and tones. In addition, it comes in a white finish for wall mounting.
This speaker offers dual-voltage operation at 25 VRMS or 70.7 VRMS. Furthermore, it provides field-selectable power taps from 1/8 W to 2 W. As a result, installers can match output to the design. A sealed back improves audibility and protects the driver.
Wheelock E70-W Speaker Specifications
- Type: low-profile wall speaker
- Audio voltage: 25 VRMS / 70.7 VRMS (dual voltage)
- Power taps: field-selectable, 1/8 W to 2 W
- Frequency range: 400 Hz to 4000 Hz
- Operating temperature: 32°F to 120°F (0°C to 49°C)
- Finish: white
- Listings: UL 1480 and ULC-S541 (speakers for fire alarm and signaling)
First, confirm whether you need a speaker or a speaker strobe. The E70-W is a speaker only. Then select the correct tap for your audio circuit. Also verify wall mounting suits your layout. Life Safety Consultants can help you order the right E-Series device.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.2 lbs |
|---|---|
| Dimensions | 12.8 × 6.5 × 6.2 in |
| Condition | New |
| Manufacturers | Wheelock |
| Part Type | Strobe |
