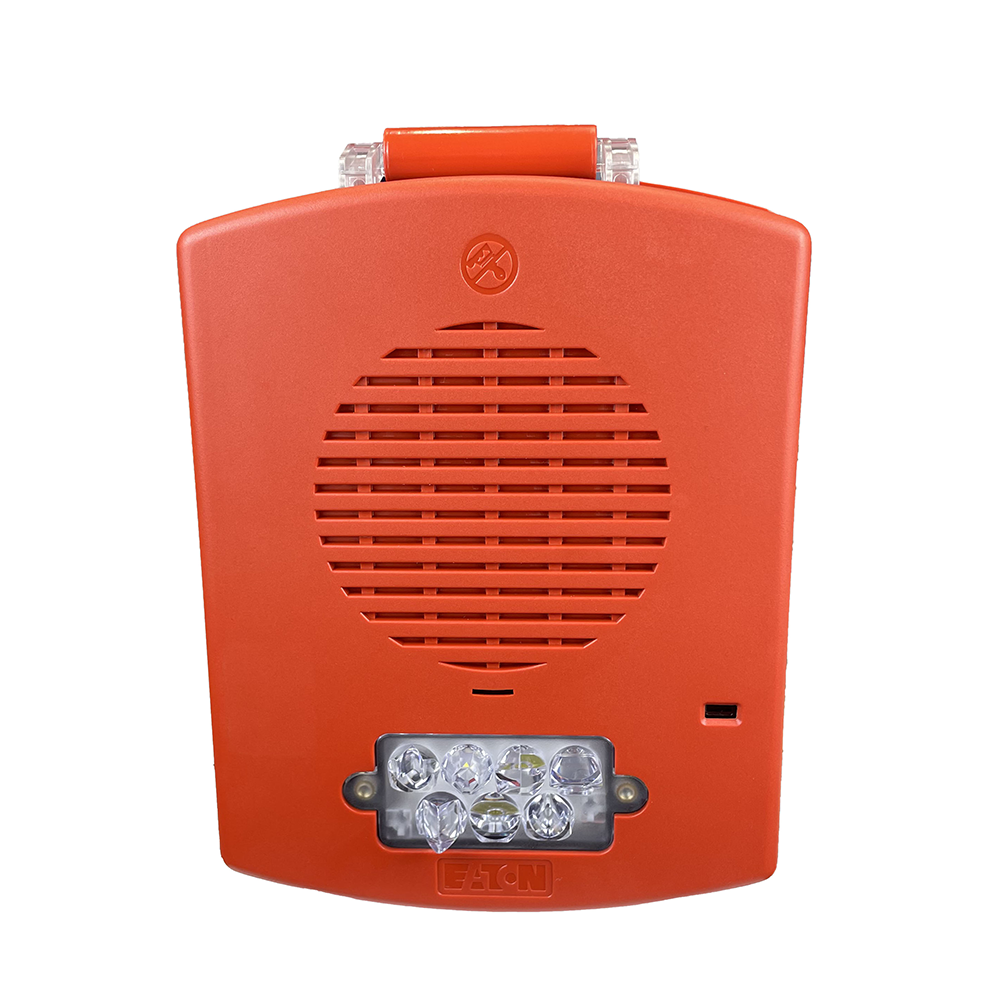

The Wheelock EL4XHS-FR 4X Horn Strobe represents a robust, high-performance notification appliance engineered for critical fire alarm system deployments across commercial and industrial environments. Designed to provide simultaneous audible and visual alarm signaling, this IP66-rated device delivers exceptional reliability in challenging mechanical and environmental conditions.
Constructed with heavy-duty die-cast aluminum and featuring a NEMA 4X rating, the EL4XHS-FR is specifically engineered for harsh indoor and outdoor applications where environmental protection and consistent performance are paramount. Fire alarm contractors and facilities managers can confidently specify this device for comprehensive emergency notification requirements in industrial facilities, transportation infrastructure, manufacturing plants, and mission-critical commercial spaces.
This UL-listed and NFPA 72 compliant notification appliance integrates advanced horn and strobe technologies to ensure maximum occupant awareness during emergency events, with specialized mounting options that support flexible installation strategies across diverse architectural environments.
Key Features
- Dual-action notification: Synchronized audible horn and visual strobe signaling
- IP66 and NEMA 4X rated enclosure for superior environmental protection
- High-intensity xenon strobe with field-selectable candela ratings (15, 30, 75, 110 cd)
- Meets stringent UL 464 and UL 1971 performance standards
- Compatible with conventional and addressable fire alarm control panel architectures
- Wide-temperature operating range: -40°F to 150°F
Specifications
- Voltage: 24 VDC nominal
- Current Draw: 80mA @ 24VDC (strobe), 75mA @ 24VDC (horn)
- Sound Output: 84-95 dBA @ 10 ft
- Color: Red
- Dimensions: 6.25″ H x 4.5″ W x 3.25″ D
Ideal for comprehensive fire notification strategies in commercial, industrial, and institutional settings, the Wheelock EL4XHS-FR provides mission-critical notification performance that meets the most demanding fire safety requirements.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 8 × 6 × 6 in |
| Condition | New |
| Manufacturers | Wheelock |
| Part Type | Horn / Strobe |
