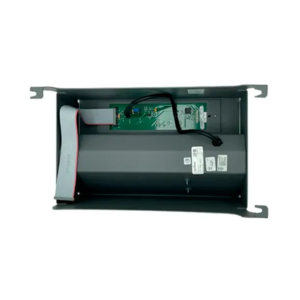

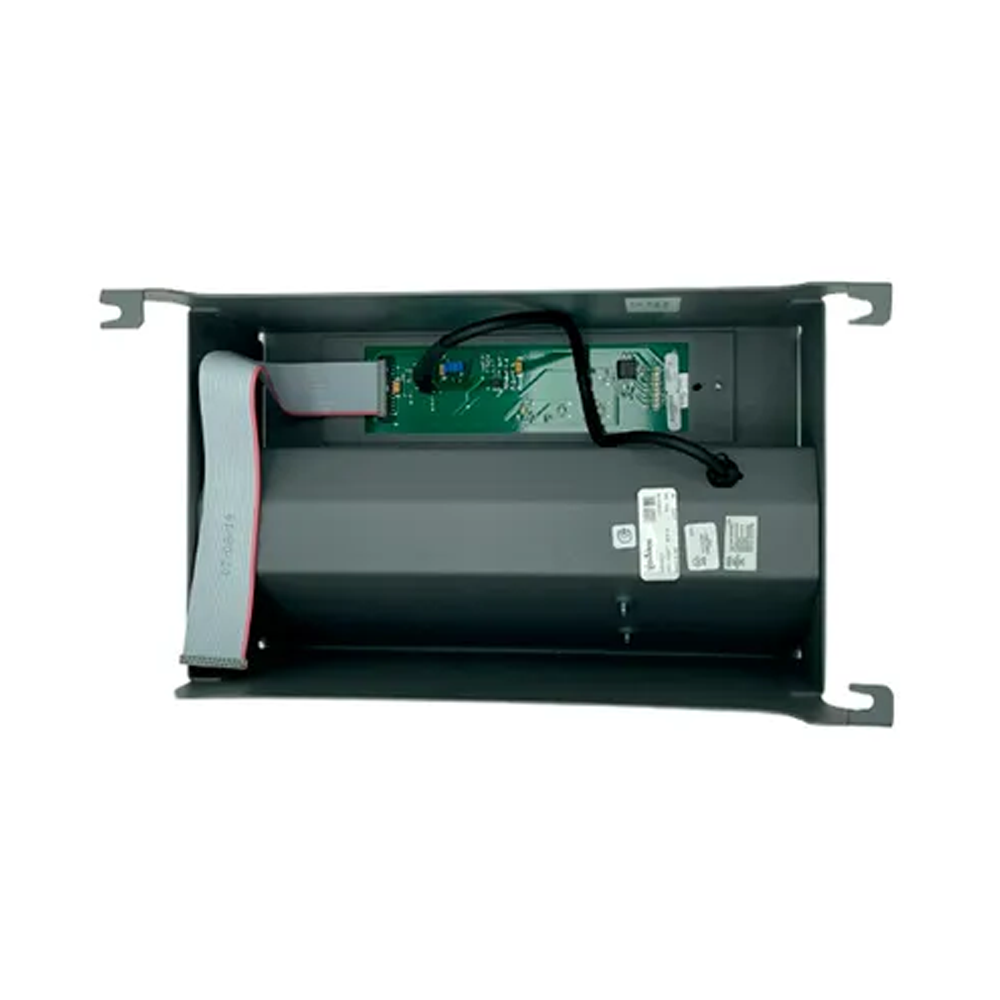

The Edwards 3-TAMPRCC is the side-mount tamper switch dimensioned specifically for 3-RCC remote closet cabinets. First, it mounts to the inside wall of the RCC enclosure. Then, when the front door opens, the switch changes state and the EST3 panel reports a supervisory event.
The 3-TAMPRCC is NOT interchangeable with the 3-TAMP. Specifically, the 3-RCC closet enclosures have different sheet-metal geometry than the lobby 3-CAB series. As a result, Edwards ships a separate tamper SKU for each cabinet family.
Edwards 3-TAMPRCC features
- Side-mount mechanical switch — installs to the inside wall of the 3-RCC cabinet
- Compatible with the full 3-RCC family: 3-RCC7R, 3-RCC14R, 3-RCC21R
- Ship weight 0.5 lb (0.2 kg) per Edwards datasheet 85010-0067
- Requires monitoring via a SIGA-CT1 or similar input module on the FACP loop
What this part is NOT
The 3-TAMPRCC does not fit lobby 3-CAB7, 3-CAB14, or 3-CAB21 cabinets — those use the 3-TAMP. Furthermore, it does not fit the 3-CAB5 — that uses the 3-TAMP5. Therefore, confirm the host cabinet family before ordering.
Listings
The 3-TAMPRCC is a passive mechanical switch. As a result, it carries no standalone agency listing. However, it becomes part of the UL 864-listed EST3 system once installed in a listed 3-RCC cabinet and wired to a listed input module for supervision.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 12 × 4.5 × 3.5 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Interface Module |
