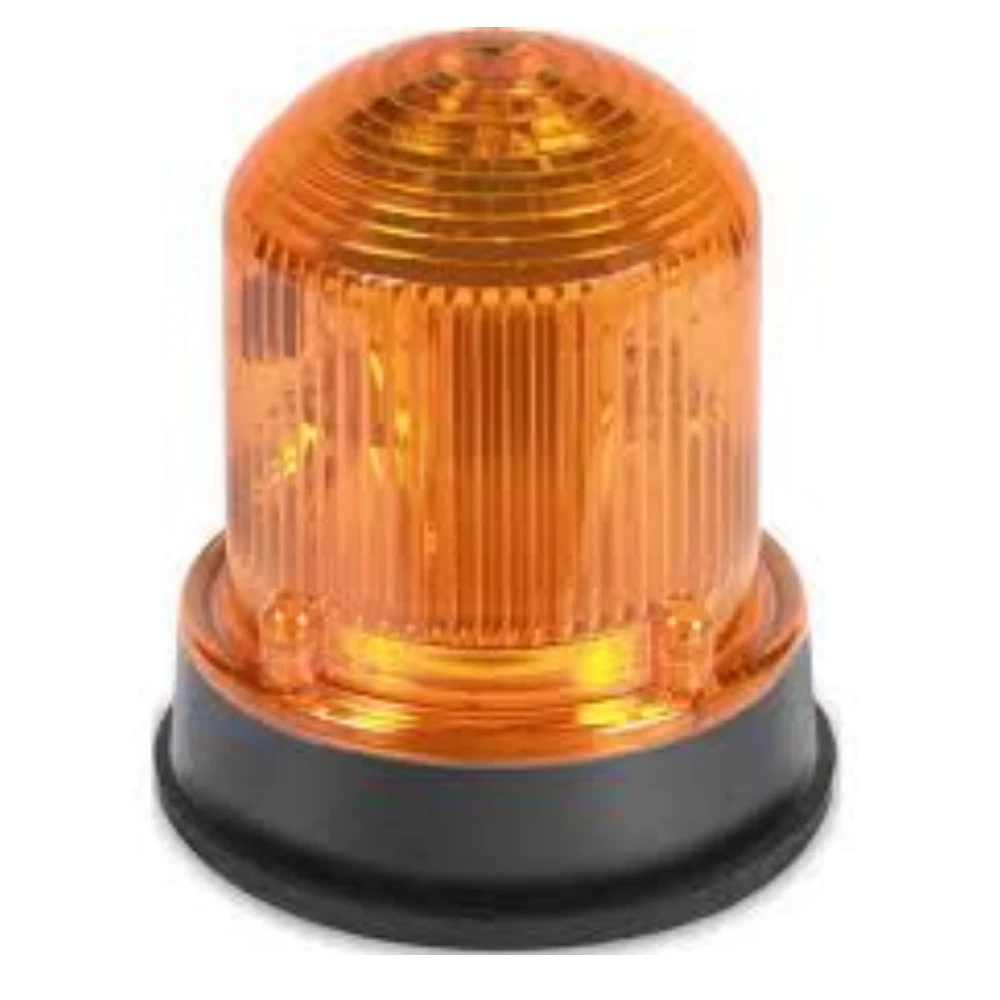

The Edwards 125LEDFA24DB is a 24 VDC flashing LED beacon in a NEMA Type 4X enclosure. First, it is an industrial visual signaling device — not a fire alarm strobe. Specifically, the 125 Class platform serves process, machine status, and area-alert applications in industrial environments. Therefore, it interfaces with PLCs, machine controls, or relay-driven 24 VDC circuits rather than fire alarm panels.
What the Edwards 125LEDFA24DB is
This is a sealed flashing LED beacon for indoor and outdoor industrial use. As a result, the NEMA 4X enclosure tolerates washdown, dust, and corrosive environments common in food processing and chemical operations. In addition, the beacon mounts either to a flat panel or to a 1/2-inch NPT conduit stub. Then a low-current LED lamp delivers long service life with minimal maintenance.
Verified specs
- Function: flashing LED beacon, industrial signaling
- Voltage: 24 VDC
- Current: 0.06 A
- LED lamp life: approximately 100,000 hours
- Enclosure rating: NEMA Type 4X
- Base material: 33% glass-filled nylon (gray or black)
- Lens: shatter-resistant polycarbonate
- Mounting: panel or 1/2-inch NPT conduit
- External depth: approximately 98.4 mm
- Optional accessory: 125GRD protective wire guard
What this beacon is NOT
However, the 125LEDFA24DB is not a fire alarm strobe. Therefore, it does not carry UL 1971 listing and does not meet NFPA 72 emergency notification requirements. Furthermore, it is not designed for SLC-loop addressable interfacing. Specifically, it operates from a standard 24 VDC supply, controlled by an external relay or PLC output.
Compatibility
The 125LEDFA24DB accepts the optional 125GRD wire guard for impact-prone installations. In addition, the beacon wires to any 24 VDC industrial circuit within its current rating.
Need help selecting the right Edwards industrial signaling component? Call Life Safety Consultants at 1-888-557-0558 or email sales@lifesafetycom.com. Our team specializes in industrial signaling and fire alarm replacement parts.
Additional information
| Weight | 0.8 lbs |
|---|---|
| Dimensions | 6 × 4 × 4 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Replacement Part |
