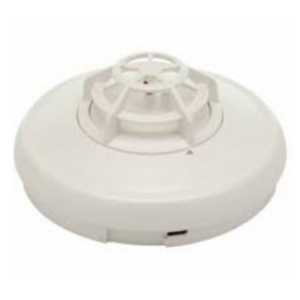

The Simplex 4098-9613 is a rate-of-rise, fixed-temperature heat detector. It alarms at a fixed 135 deg F (57 deg C). First, it adds rate-of-rise sensing for a faster response. As a result, it reacts to both a set temperature and a rapid temperature climb.
Simplex 4098-9613 detection method
This detector uses a fast-response, thermistor-based design. Therefore, it senses heat electronically rather than mechanically. Also, the rate-of-rise function trips at roughly 15 to 25 deg F per minute. In addition, the unit is self-restoring. Consequently, it resets automatically once temperatures return to normal.
Specifications
- UL 521 listed heat detector
- Fixed alarm point: 135 deg F (57 deg C)
- Rate-of-rise trip: 15 to 25 deg F/min
- Operating voltage: 24 VDC (15 to 32 VDC range)
- Operating temperature: 32 deg F to 100 deg F (0 deg C to 38 deg C)
- Humidity: 10% to 95% RH
- LED alarm indicator; self-restoring
This detector mounts on compatible Simplex two-wire and four-wire bases. Furthermore, it suits areas where smoke detection is impractical. For example, mechanical rooms and similar spaces benefit from heat detection.
For more information, contact the Life Safety Consultants team at 1-888-557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.25 lbs |
|---|---|
| Dimensions | 4 × 4 × 1.8 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Heat Detector |
