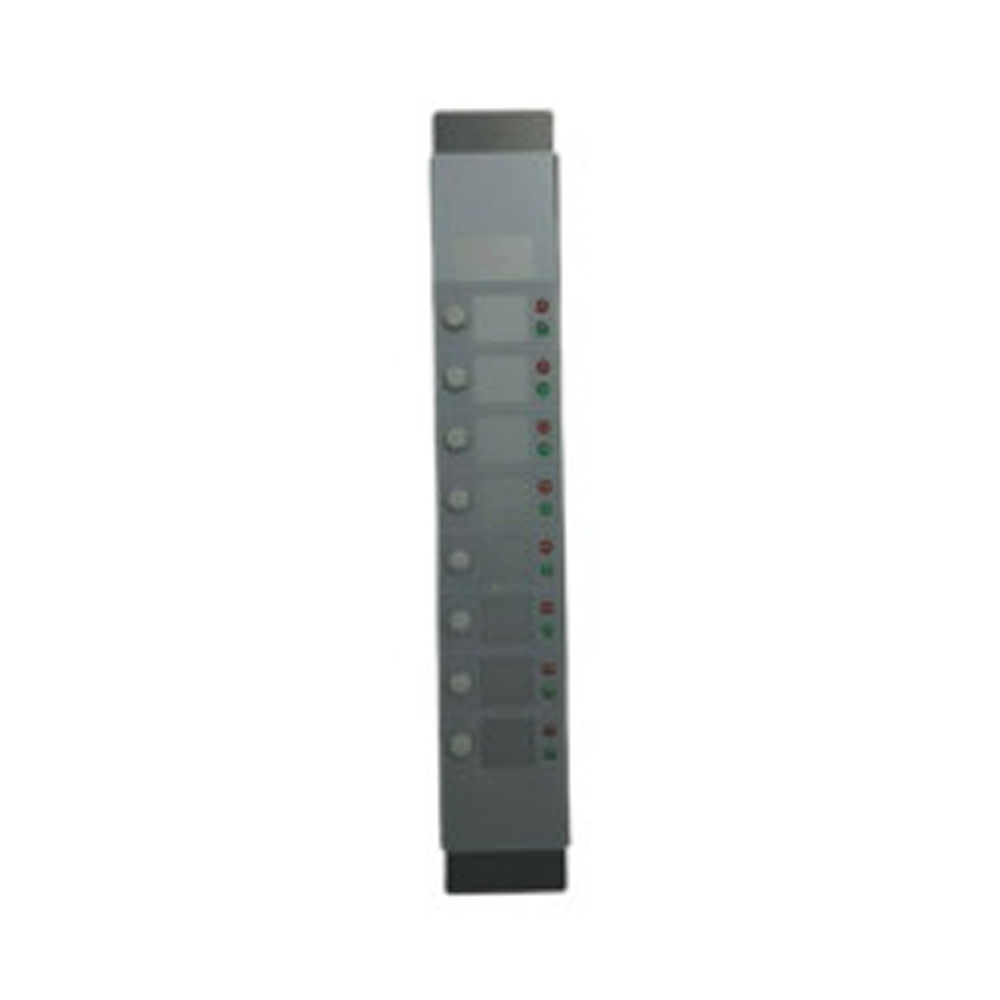

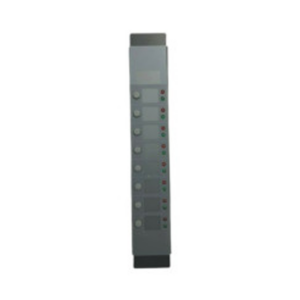

The Simplex 4100-1284 8-switch, 16 red/green LED module is a precision-engineered interface component designed for advanced fire alarm control panels in commercial and industrial environments. This module provides critical visual and control functionality within addressable fire alarm network architectures, enabling complex monitoring and signaling capabilities for sophisticated life safety systems.
Engineered for robust performance in mission-critical applications, the 4100-1284 supports comprehensive system integration with Simplex intelligent fire detection platforms. Ideal for facility managers and fire alarm contractors managing complex building protection networks, this module facilitates detailed status reporting and remote switch control across multiple zones and system segments.
Key Features
- Eight programmable software-configurable switches with dual-color (red/green) LED status indicators
- Full compatibility with Simplex 4100 series intelligent fire alarm control panels
- High-reliability electronic design with conformal coating for enhanced environmental resistance
- Supports addressable communication protocols for precise system diagnostics and monitoring
- Simple plug-in installation with direct mounting to standard Simplex panel backplanes
- UL Listed and compliant with NFPA 72 fire alarm and signaling code requirements
Specifications
- Operating Voltage: 24VDC nominal
- Current Draw: Minimal standby current, <50mA
- LED Indicators: 16 total (8 red, 8 green)
- Environmental Rating: Indoor use, protected environment
- Panel Compatibility: Simplex 4100 Series Intelligent Control Panels
Typical installation contexts include commercial office complexes, healthcare facilities, educational campuses, and industrial manufacturing environments requiring comprehensive fire detection and reporting capabilities. The 4100-1284 module provides system integrators with flexible monitoring options for HVAC shutdown, door release, elevator recall, and other critical life safety functions.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.3 lbs |
|---|---|
| Dimensions | 13.25 × 10.4 × 2.75 in |
| Condition | New |
| Manufacturers | Simplex |
| Part Type | Module |
