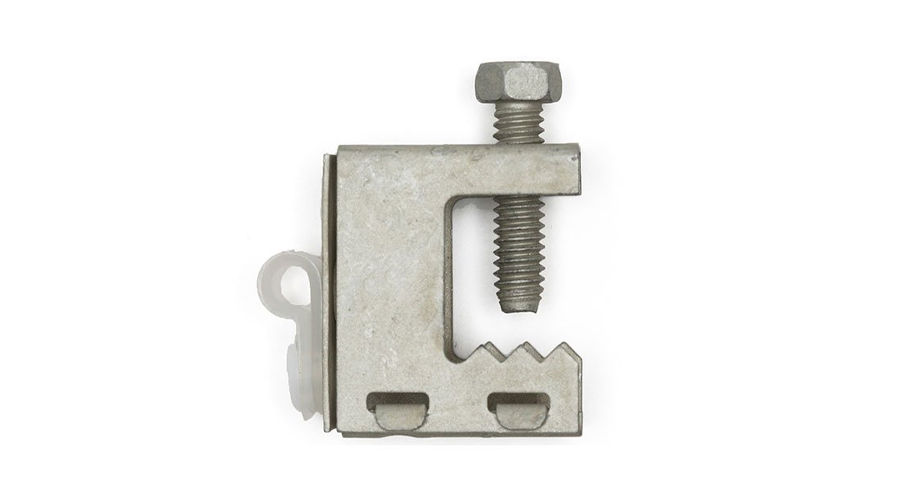

The Protectowire BC-2 beam clamp is a mounting fastener for Protectowire linear heat detection (LHD) cable. Specifically, it consists of a plated-steel clamp body, a polypropylene WAW clip, and a snap button. First, it secures Protectowire LHD cable to overhead structural members. Then, the clamp lets installers mount the detector without drilling into beams or trays.
How the Protectowire BC-2 is used
Therefore, installers use the BC-2 to attach Protectowire to cable trays, conveyors, angle irons, I-beams, and bar joists. Also, the WAW clip lightly grips the LHD cable so installation tension can be applied progressively. In addition, the snap button locks the clip in place. As a result, the BC-2 holds the detector at correct spacing without overcompressing the cable jacket.
BC-2 product details
- Material: plated steel clamp body, polypropylene WAW clip, snap button
- Use environment: general indoor commercial and industrial use
- Mounting surfaces: cable trays, conveyors, angle irons, I-beams, bar joists
- Cable compatibility: Protectowire PHSC, PLR, CTI, and Fiber Optic LHD detectors
- Installer’s note: use only Protectowire-supplied or Protectowire-recognized fasteners for compliant installation
- Manufacturer reference: see the Protectowire BC-2 datasheet (DS-8918B) for current installation detail
Typical applications
Specifically, common uses include warehouse and cold-storage LHD runs, conveyor protection, cable-tray mounting, and overhead structural runs in industrial buildings. Finally, confirm compatibility with your specific Protectowire detector jacket type (EPC, XCR, LSZH, XLT, or EPR) before ordering.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 2.5 × 1.5 × 1 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Heat Detector |
