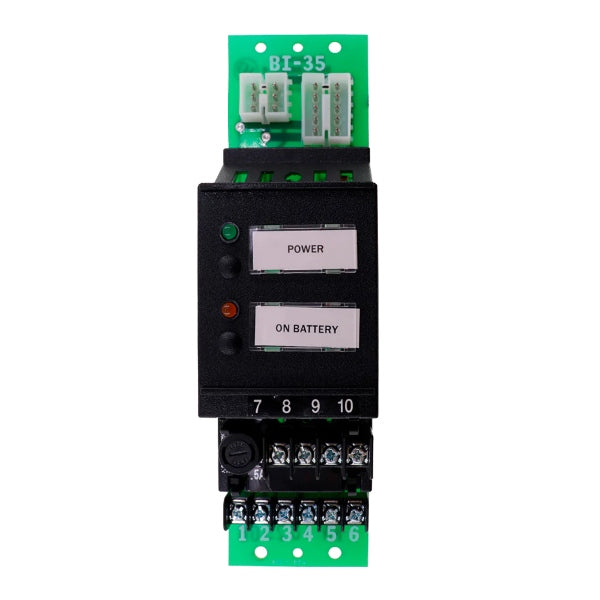

The Siemens BI-35 interface module is a battery interface for Cerberus Pyrotronics System 3 fire alarm panels. Specifically, it works with the PS-35 power supply and BC-35 battery charger as an auxiliary power supply. As a result, legacy System 3 installations can keep supervised standby power without replacing the panel.
The BI-35 supervises its battery and charger connections. If a fault occurs, its trouble relay transfers and reports a trouble to the main system. In addition, a system input on the BI-35 activates audible circuits and deactivates the battery charger. Therefore, the module ties auxiliary power directly into panel alarm and trouble logic.
Siemens BI-35 Interface Module Features
- Battery interface / auxiliary power supply module for Cerberus Pyrotronics System 3
- Works alongside the PS-35 power supply and BC-35 battery charger/transfer module
- Trouble relay reports faults to the main fire alarm system
- Supports up to ten AE-30 audible (notification) modules per BI-35
- Also interfaces to MXL and MXL-IQ systems through a TRI-60R or TRI-B6R module
- Siemens installation instructions P/N 315-085062
Specifications
- Common trouble output: 24 VDC, 100mA maximum
- Auxiliary power supply trouble contacts: rated 24 VDC, 1A
- Trouble input: rated 24 VDC, 6.5mA
- DC output: 24 VDC, 0.25A maximum
- Mounting: in the panel enclosure, within 20 inches of the PS-35 and BC-35
Keep Your System 3 Panel Running
System 3 parts are discontinued, so sourcing matters. However, Life Safety Consultants stocks hard-to-find Cerberus Pyrotronics replacement modules. For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 3.5 × 12.5 × 6 in |
| Condition | New |
| Manufacturers | Siemens |
| Part Type | Interface Module |
