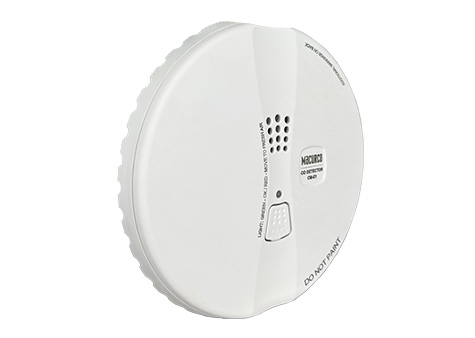

The Macurco CM-E1-RS is a round, surface-mount carbon monoxide detector. Specifically, it mounts directly to wall or ceiling using the rear housing. Therefore, no in-wall box is required for installation.
First, the CM-E1-RS suits residential, multi-family, and commercial office environments. Then, it interfaces with fire alarm or burglary control panels through dry-contact relays. In addition, an integrated buzzer provides local CO alarm at 85 dBA.
Macurco CM-E1-RS sensor and coverage
The unit uses a 10-year electrochemical CO sensor with end-of-life indication. As a result, replacement cycles are predictable for facility planning. Also, coverage reaches 900 square feet per unit, per the Macurco product page.
Verified specifications
- Input power: 9–32 VDC
- Sensor: electrochemical, 10-year service life
- Alarm relay: SPST, field-selectable N.O. or N.C.
- Trouble / supervisory relay: SPST, N.C.
- Local buzzer: 85 dBA at 10 ft
- Operating temperature: 40°F to 100°F
- Coverage area: 900 sq ft
- Mounting: surface, rear housing to wall or ceiling
- Listing: UL 2075; CSFM approved
Installation notes
First, mount the rear housing at the manufacturer-specified height for CO detection. Then, land 9–32 VDC power and the alarm / trouble dry contacts. Finally, confirm panel supervision and bench-test with a Macurco CM-FCK calibration kit.
Furthermore, the CM-E1-RS is the surface-mount variant of the CM-E1 family. Alternatively, the CM-E1-RF is the flush-mount round option, and the CM-E1 is the rectangular base unit.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 3 × 7 × 7 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
