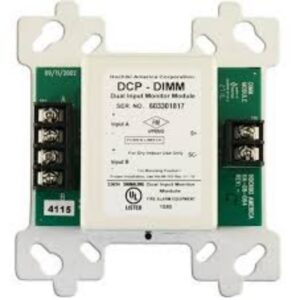

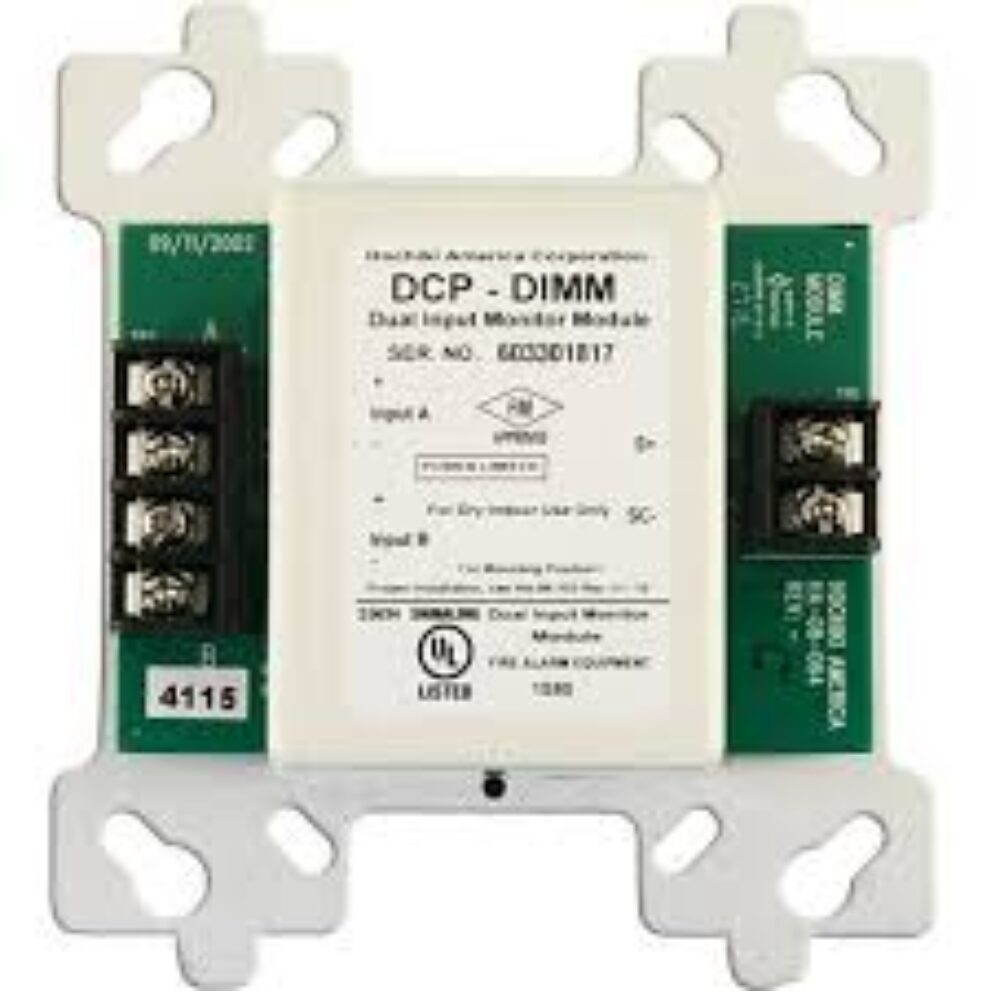

The Hochiki DIMM is a dual input monitor module for Hochiki addressable fire alarm systems. It monitors two independent dry-contact circuits while using only one SLC address.
First, the DIMM sits on the SLC loop and uses one device address. Then it watches two separate Class B contact circuits in parallel. As a result, an installer can monitor two devices — fire alarm or supervisory — from a single module slot.
Hochiki DIMM Capacity and Programming
Each module can be programmed to monitor Normally Open (NO) or Normally Closed (NC) contacts. In addition, each input handles either fire alarm or supervisory devices. Furthermore, up to 127 devices can sit on a single Hochiki SLC loop.
Key Specifications
- Supply voltage (SLC): 25.3 – 39 VDC
- Average current: 600 µA typical, 720 µA in alarm
- EOL device resistor: 22 kΩ
- Two independent Class B contact circuits
- Status LED: single bi-colored indicator
- Address stored on onboard EEPROM
- Operating temperature: 32°F – 120°F (0°C – 49°C)
- Relative humidity: 90% RH, non-condensing
- Dimensions: 4.2″ W × 4.7″ H × 1.4″ D
- UL 864 9th Edition Listed
Mounting
The DIMM mounts in a standard 4″ square electrical box or a double-gang box. Therefore it drops into existing wall and ceiling installations without special hardware.
Order or Get Application Help
Since 2002, Life Safety Consultants has been a trusted source for Hochiki addressable modules. To order the Hochiki DIMM or get application guidance, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 7 × 6 × 3 in |
| Condition | New |
| Manufacturers | Hochiki |
| Part Type | Heat Detector |
