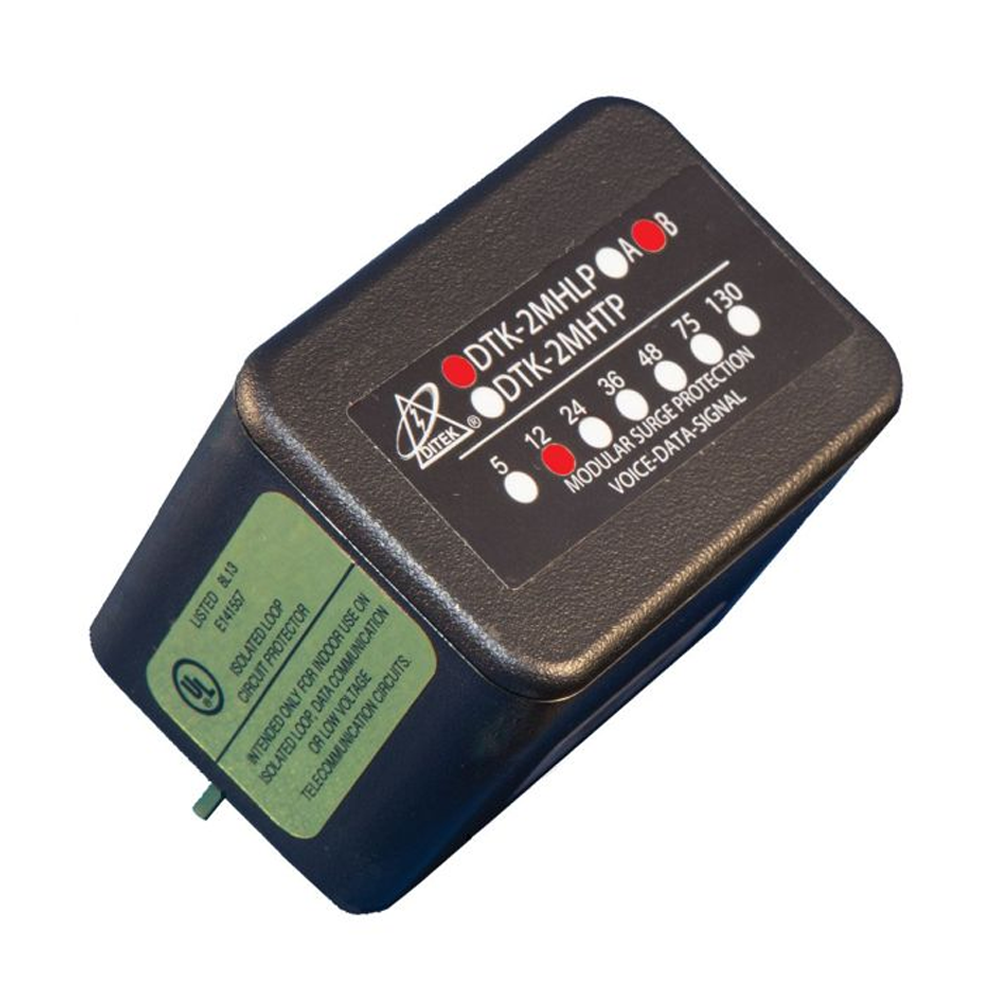

The Ditek DTK-2MHLP12B is a 12 V hybrid, field-replaceable surge suppression module that protects two signal pairs on low-voltage voice, data, and signaling circuits. It is sold as a module only; it requires a separate Ditek Snap-Track base (such as the DTK-2MB) for mounting and wiring.
The DTK-2MHLP12B uses multi-stage SAD (silicon avalanche diode) hybrid technology. Therefore, it clamps fast transients at the gas-discharge front end and the SAD back end together, yielding low let-through voltage.
First, the module installs with a card-edge connector on the matching base. As a result, replacement is fast and hot-swappable — no need to re-terminate field wiring. In addition, the module covers two pairs (four conductors) per unit. Furthermore, multiple modules can share a common ground when mounted on a multi-position base, scaling protection up to 10 pairs.
Ditek DTK-2MHLP12B Verified Specifications
- Service voltage: 12 V (AC or DC)
- Pairs protected: 2 (4 conductors) per module
- Technology: multi-stage SAD hybrid
- Maximum surge current: 20,000 A
- Maximum continuous current: 1 A
- Data rate: 200 kbps to 2 Mbps
- Operating temperature: -40°F to 158°F (-40°C to 70°C)
- Humidity: up to 95% non-condensing
- Mounting: requires a Ditek 2MB / 3MB / 4MB / 5MB Snap-Track base (sold separately)
- Field-replaceable, hot-swappable, modular card-edge connection
Typical Applications
First, fire alarm SLC, IDC, and NAC loops at the panel. In addition, burglar alarm panel zone loops and 4–20 mA process loops. Also, access-control reader and door-position signaling. Furthermore, low-voltage 12 V powered or data circuits where a surge can take down the system.
Important Application Note
The DTK-2MHLP12B is the module only. A Snap-Track base (DTK-2MB, DTK-3MB, DTK-4MB, or DTK-5MB) is required for installation. If you need the module pre-paired with a hardwired base, order the DTK-2MHLP12BWB instead. Also, the 12 V module must match the loop voltage — do not apply a 12 V module to a 24 V loop or vice-versa.
