Ditek (DTK-4LVLPLV) 4 pair – 24v- terminal strip – 22-12 awg

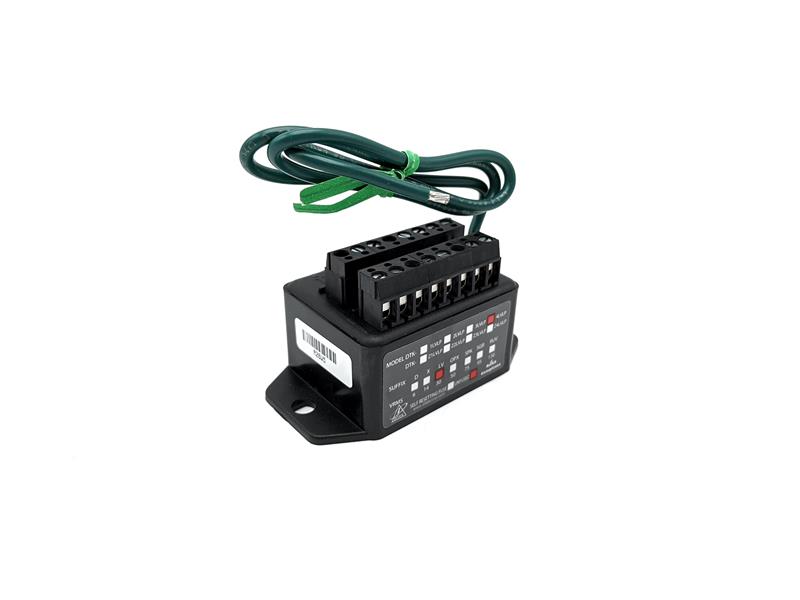

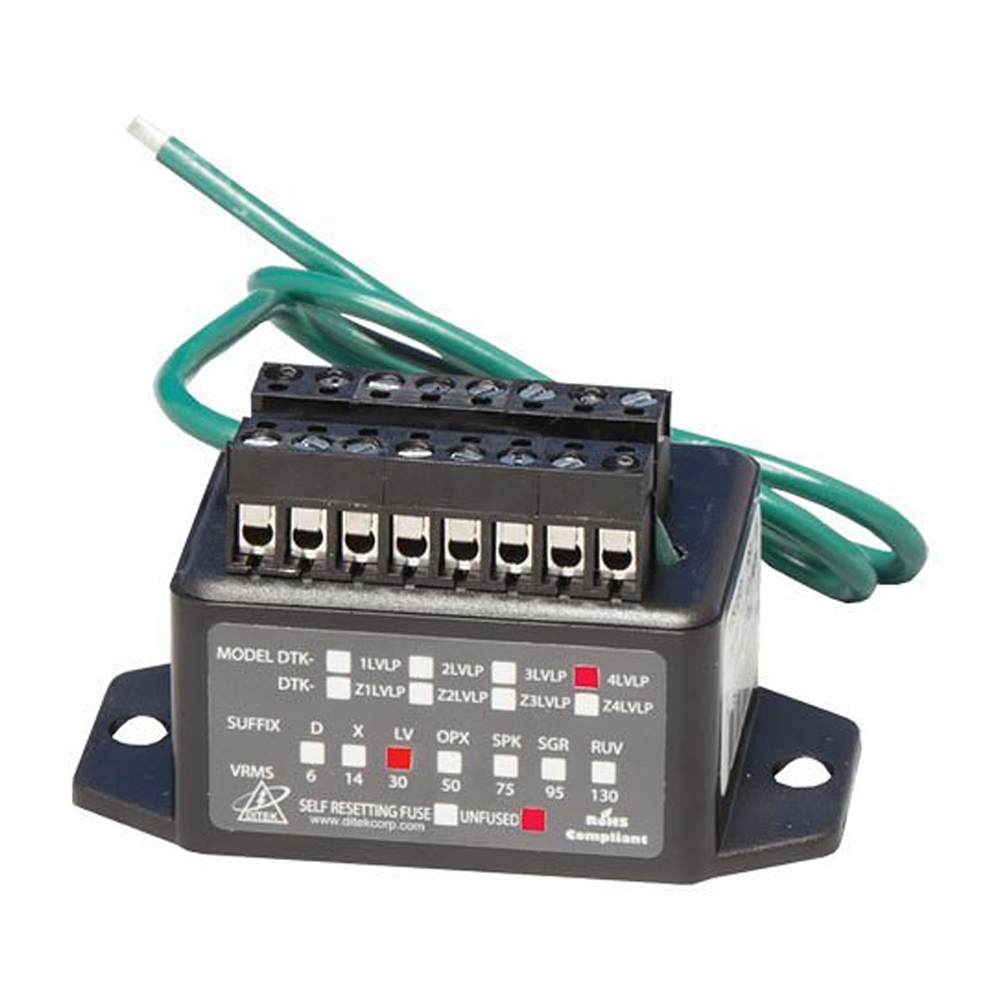

The Ditek DTK-4LVLPLV is a 4-pair, 24 V low-voltage line protector with screw-terminal connections for 22-16 AWG wire. Furthermore, it protects four hardwired pairs in a compact in-line module. As a result, panels with multiple low-voltage loops can be covered from a single device.

First, the DTK-4LVLPLV clamps line-to-ground transients on each protected pair. In addition, all four pairs share a common ground point on the housing. Therefore, installation requires only a single ground connection to the panel.

Also, the screw-terminal interface accepts 22-16 AWG conductors. As a result, it fits typical fire panel SLC, IDC, NAC, and burglar zone wiring without splice modifications. Furthermore, the ABS housing keeps the device compact enough for in-cabinet installation.

Ditek DTK-4LVLPLV Verified Specifications

• Service voltage: 24 V
• MCOV: 38 VDC
• Clamping voltage: 47 V
• Protection modes: line-to-ground (L-G)
• Surge current rating: 2,000 A per pair
• Pairs protected: 4
• Wire range: 22-16 AWG screw terminals
• Operating temperature: -40°F to 158°F (-40°C to 70°C)
• Maximum humidity: 95% non-condensing
• Dimensions: 1.6″ H x 3.0″ W x 1.6″ D (41 x 76 x 41 mm)
• Weight: 2.4 oz (68 g)
• Housing: ABS
• Certifications: UL 497A, UL 497B
• Warranty: 10-year limited

Typical Applications

First, fire alarm panel NAC, SLC, and IDC loops at 24 V. In addition, burglar alarm zone loops. Also, 4-20 mA current loops and process control signaling. Furthermore, access control reader and door-position pairs. As a result, the DTK-4LVLPLV consolidates four hardwired low-voltage loops into a single surge protector.

Application Note

Match module voltage to loop voltage. Specifically, the LVLP-LV variant is rated for 24 V circuits. Therefore, do not apply it to 12 V or 48 V loops. Also, terminate the ground lead to the panel earth bus, not the cabinet door or chassis. As a result, the device clamps to a low-impedance reference.
