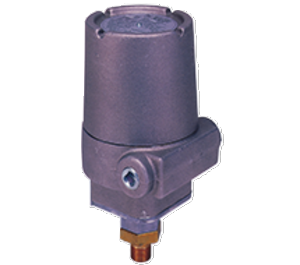

The Honeywell EPS40EXP is an explosion-proof alarm pressure switch. Specifically, it signals when sprinkler water flow generates a 40 PSI pressure event. As a result, it provides supervisory signaling in hazardous locations.
The EPS40EXP houses two SPDT (Form C) contacts. Therefore, two independent circuits can act on a single pressure event. In addition, the rugged cast aluminum housing meets NEMA 4 for wet environments.
Honeywell EPS40EXP Specifications
First, the pressure adjustment range is 10 to 100 PSI. Factory settings are 50 PSI rising and 30 PSI falling. Then, contact rating is 10.0 A, 1/2 HP at 125/250 VAC. Furthermore, the DC rating is 2.5 A at 6, 12, or 24 VDC.
Also, the operating temperature range is -40°F to 160°F (-40°C to 71°C). The pressure connection is 1/2″ NPT male brass. Two 1/2″ conduit entries support field wiring. Shipping weight is 6.2 lbs.
Hazardous Location Listings
The EPS40EXP carries multiple hazardous location ratings. Specifically, it is listed for Class I Div 1 Groups B, C, D. In addition, Class II Div 1 Groups E, F, G and Class III Div 1 are covered.
Order or Get Application Help
Life Safety Consultants stocks Honeywell EPS Series pressure switches. To order the Honeywell EPS40EXP or confirm hazardous-location suitability, call our team.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 11 × 7 × 7 in |
| Condition | New |
| Manufacturers | Honeywell |
| Part Type | Replacement Part |
