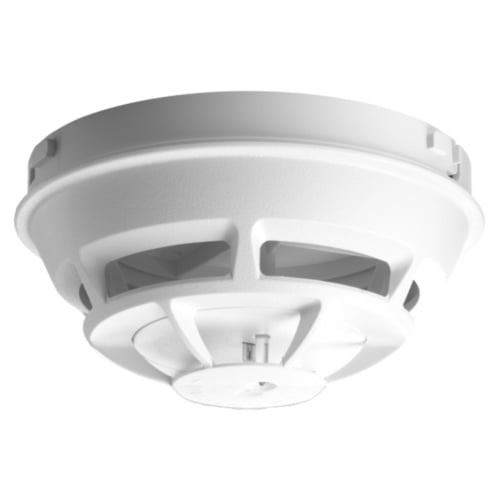

The Siemens FDOT421 is an intelligent multi-sensor smoke detector for addressable systems. It combines an optical smoke sensor with a thermal sensor. The detector then evaluates both signals together. As a result, it improves fire detection while limiting nuisance alarms.
This detector reports its sensitivity at the control panel. In addition, it uses Siemens ISOtechnology for True Class-X SLC operation. Therefore, it improves circuit integrity and addressable fault finding.
Siemens FDOT421 Sensing and Specifications
The optical sensor detects smoke at roughly 2.0 %/ft obscuration. Also, the thermal sensor responds at 135°F (57°C). The detector mounts on the Model DB-11 base. Furthermore, it connects through FDnet / C-NET on Cerberus PRO systems.
- Multi-sensor detector: optical smoke plus thermal sensing
- Smoke sensitivity: approximately 2.0 %/ft obscuration
- Thermal response: 135°F (57°C)
- Rated voltage: 16-30 VDC
- Maximum alarm current: 410 uA
- Operating temperature: 32°F to 100°F (0°C to 38°C)
- Mounts on the Model DB-11 base; FDnet / C-NET
- UL 268 (7th edition) listed
- Manufacturer part number S54320-F6-A1
Always confirm panel compatibility before installation. Life Safety Consultants stocks Siemens Cerberus PRO detectors and bases.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 5 × 2 in |
| Condition | New |
| Manufacturers | Siemens |
| Part Type | Smoke Detector |
