GENESIS (55551004) 14/2Pr Solid Shielded; Fire Alarm, Nyc C

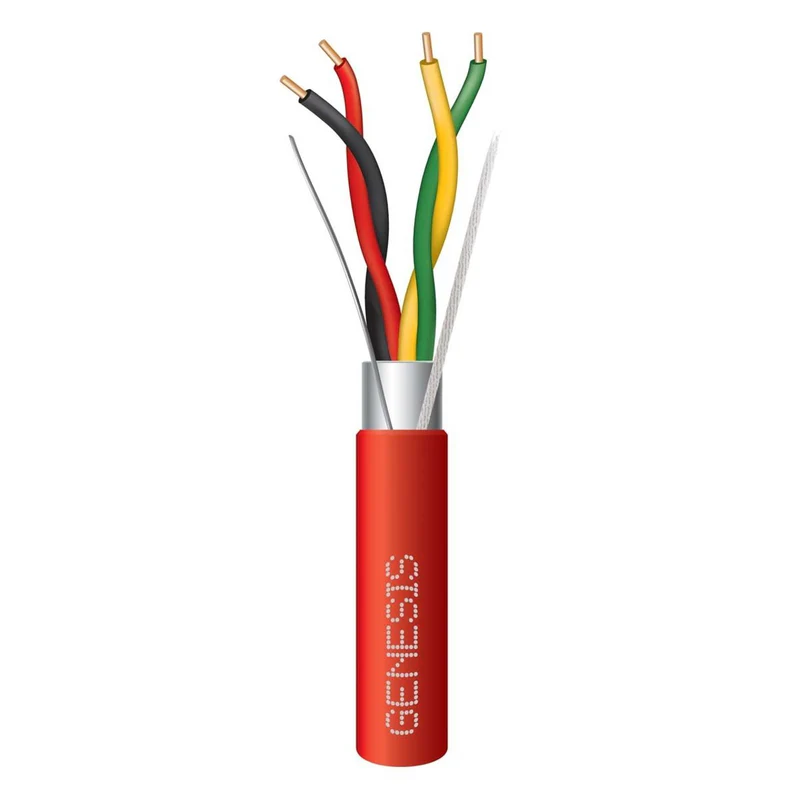

The Genesis 55551004 is a 14 AWG, 2-pair solid shielded plenum-rated fire alarm cable, classified for New York City fire alarm installations. It carries the Type FPLP power-limited fire alarm plenum rating. As a result, installers can use it in NYC-jurisdiction commercial buildings where Local Law 5 / Local Law 39 classification is required. The cable ships in red on a 1000-foot reel.

Genesis 55551004 Specifications

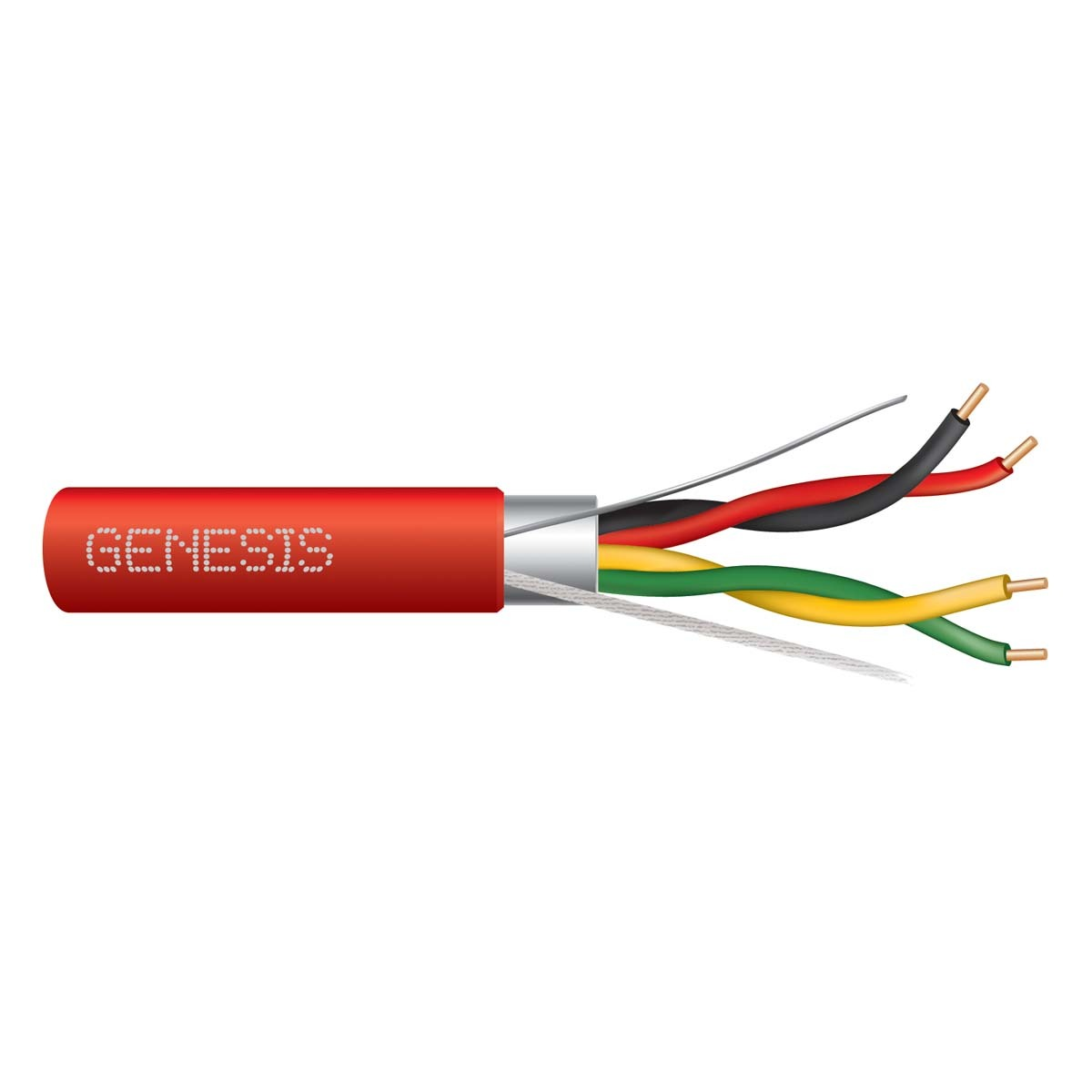

Construction features 14 AWG solid bare copper conductors. In addition, an aluminum/polyester foil shield wraps all conductors with a drain wire. Furthermore, the two-pair configuration supports separate shielded circuits in one jacket. The cable is rated 300 volts with an operating range of -20°C to 75°C.

NYC Classification

First, NYC fire alarm circuits require cable classified by the NYC Department of Buildings under Local Law 5 and Local Law 39. Then, this classification adds stricter low-smoke and burn-resistance requirements beyond standard UL plenum cable. As a result, the 55551004 is specifically built and tested for the NYC market.

Listings and Standards

This NYC-classified shielded plenum fire alarm cable meets:

• UL 1424 — Power-Limited Fire-Alarm Circuits, Type FPLP
• UL 13 — Power-Limited Circuit Cables, Type CL3P
• NYC Department of Buildings classification (Local Law 5 / Local Law 39)
• Plenum-rated per NFPA 262 burn-and-smoke test

Installation Applications

First, the FPLP rating allows installation in fabricated air ducts per NEC 300.22(B). Then, it also runs in plenum spaces per NEC 300.22(C) and in risers. In addition, the two-pair construction lets one cable run serve two shielded circuits. As a result, this saves both labor and conduit fill in dense installations.
