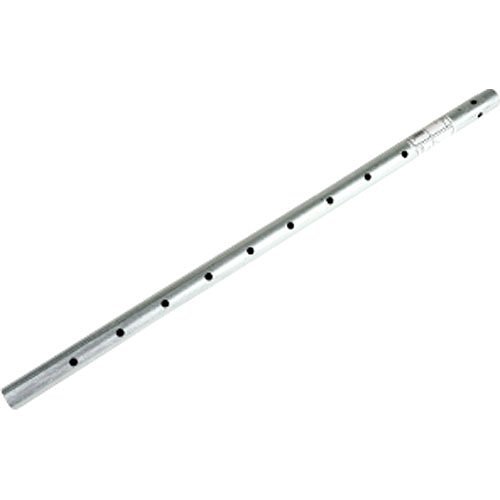

The Kidde SD-T60 is a 60-inch air sampling tube for Kidde duct smoke detector housings. Specifically, it draws a sample of duct airflow into the detector’s sensing chamber. Therefore, it extends smoke detection into wide HVAC ductwork.
First, the sampling tube mounts across the air duct in the moving airstream. Then, inlet holes along its length collect air as it flows past. As a result, the duct detector can sense smoke carried in the HVAC supply or return air.
Where the Kidde SD-T60 Fits
The 60-inch length spans ducts up to 60 inches (5 ft) wide. In addition, the tube pairs with Kidde duct detector housings for early smoke detection. Furthermore, duct detection helps stop smoke from spreading through a building’s ventilation system. For narrower ducts, Kidde also offers a 42-inch tube, the SD-T42.
Key Features
- 60-inch air sampling tube for Kidde duct smoke detector housings
- Mounts across the duct in the moving airstream
- Inlet holes collect a representative air sample along the tube length
- Spans ducts up to 60 inches (5 ft) wide
- Compatible with Kidde duct detector sampling chambers
Order or Get Application Help
Life Safety Consultants stocks Kidde duct smoke detectors and sampling tubes. To order the Kidde SD-T60 or to confirm the right tube length for your duct width, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2 lbs |
|---|---|
| Dimensions | 60 × 1 × 1 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Duct Detector |
