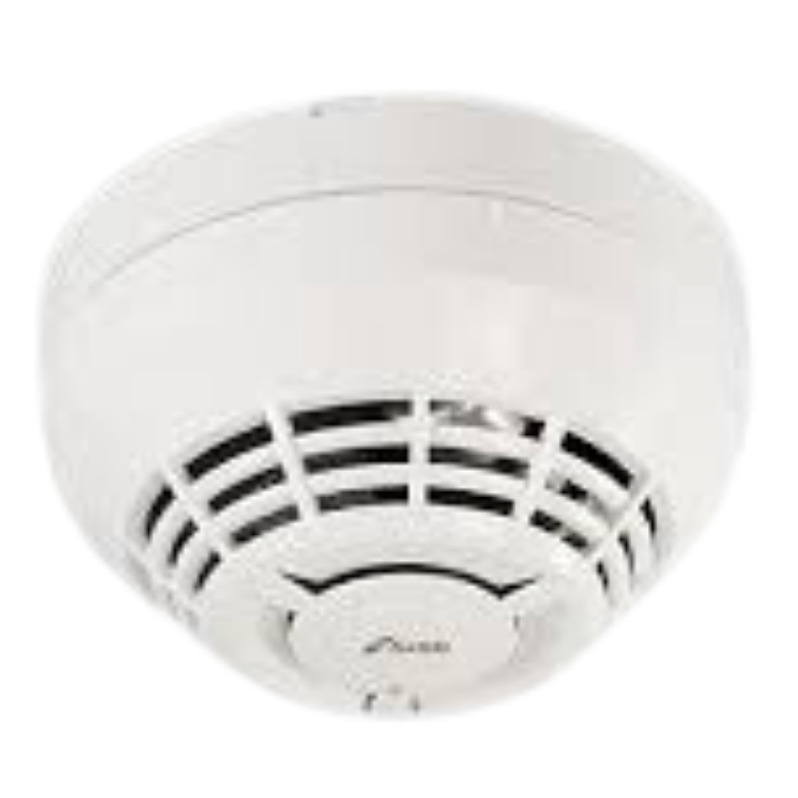

The Kidde KI-COD Intelligent Carbon Monoxide Detector represents advanced life safety technology engineered specifically for commercial fire alarm and detection systems. Designed for comprehensive environmental monitoring, this intelligent sensor provides precise CO detection in complex commercial environments including office buildings, healthcare facilities, educational campuses, and industrial complexes.
Fully compatible with addressable fire alarm control panels, the KI-COD integrates seamlessly into sophisticated networked detection systems. Its microprocessor-based intelligent sensing technology enables real-time carbon monoxide concentration tracking, delivering rapid and accurate alerts that enable immediate emergency response and occupant evacuation protocols.
Professional installers will appreciate the KI-COD’s robust engineering, which supports comprehensive building safety management by providing early warning against potentially lethal carbon monoxide accumulation across diverse commercial settings.
Key Features
- Advanced electrochemical sensing technology with enhanced accuracy and minimal nuisance alarm potential
- Full NFPA 72 compliance for commercial carbon monoxide detection requirements
- Addressable communication protocol compatible with major fire alarm panel manufacturers
- Self-diagnostic capabilities with continuous drift compensation and sensor health monitoring
- Wide operational temperature range (-40°F to 140°F) for diverse environmental installations
- UL 2075 listed for comprehensive safety system integration
Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: < 250 µA
- Alarm Current: < 6 mA
- Sensing Range: 0-500 parts per million (ppm)
- Response Time: < 60 seconds at 70 ppm
- Dimensions: 6.25″ diameter x 2.0″ depth
Ideal for integration with commercial fire alarm systems utilizing addressable technologies, the Kidde KI-COD supports comprehensive life safety strategies in multi-zone environments. Engineered to meet rigorous industry standards including NFPA 72, UL 268, and UL 464, this detector provides mission-critical CO monitoring for facilities management professionals.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 3 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Sensor |
