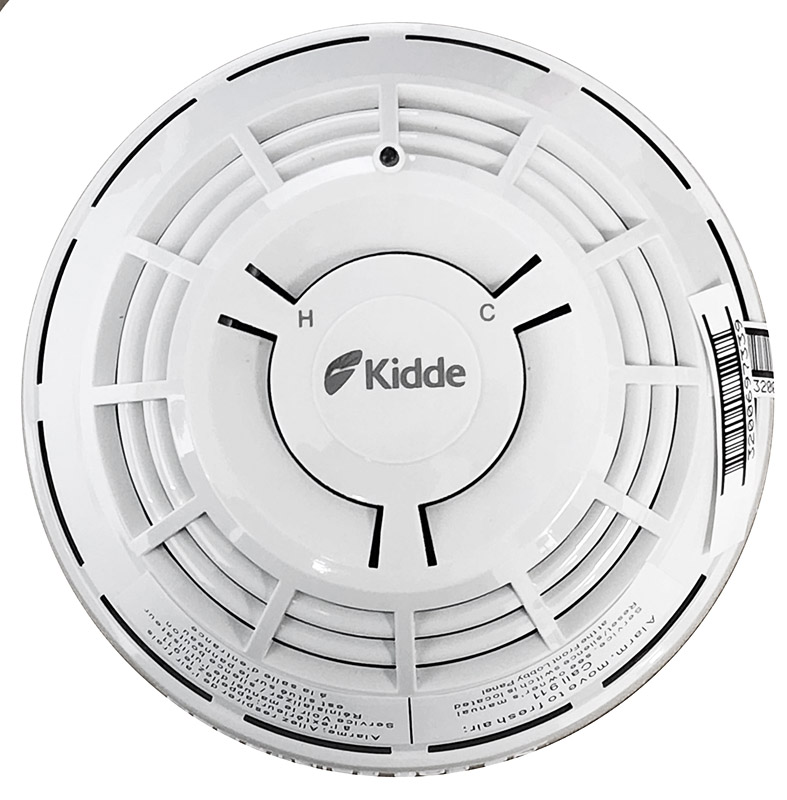

The Kidde KI-HCD Multisensor Detector represents advanced fire detection technology designed for comprehensive environmental monitoring in commercial and institutional settings. This intelligent analog sensor combines heat detection, carbon monoxide sensing, and optical smoke detection capabilities into a single addressable unit, providing multiple layers of life safety protection for complex facility environments.
Engineered for seamless integration with intelligent fire alarm control panels, the KI-HCD delivers precise, real-time detection across diverse environmental conditions. Its sophisticated multi-criteria design allows for rapid, accurate threat identification in challenging commercial spaces such as office complexes, healthcare facilities, educational institutions, and industrial environments where early warning is critical.
Key Features
- Simultaneous heat, carbon monoxide, and optical smoke detection in a single addressable device
- Compatible with intelligent analog addressable fire alarm panels from major manufacturers
- Advanced algorithmic processing reduces nuisance alarms while maintaining high sensitivity
- Low-profile design facilitates easy mounting in suspended ceilings, corridors, and mechanical spaces
- UL Listed and compliant with NFPA 72 installation requirements for commercial fire detection systems
- Wide operating temperature range supports varied environmental installation contexts
Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: < 250 µA
- Alarm Current: 5-7 mA
- Temperature Rating: 32°F to 100°F (0°C to 38°C)
- Humidity Range: 10-93% non-condensing
- Mounting Base: Standard 4″ addressable mounting configuration
Certified to critical industry standards including UL 268 for smoke detectors, UL 521 for heat detectors, and UL 464 for audible signaling devices, the Kidde KI-HCD provides comprehensive protection for mission-critical infrastructure. Its intelligent design supports seamless communication with modern addressable fire alarm control panels, enabling sophisticated monitoring and rapid emergency response protocols.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 3 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Sensor |
