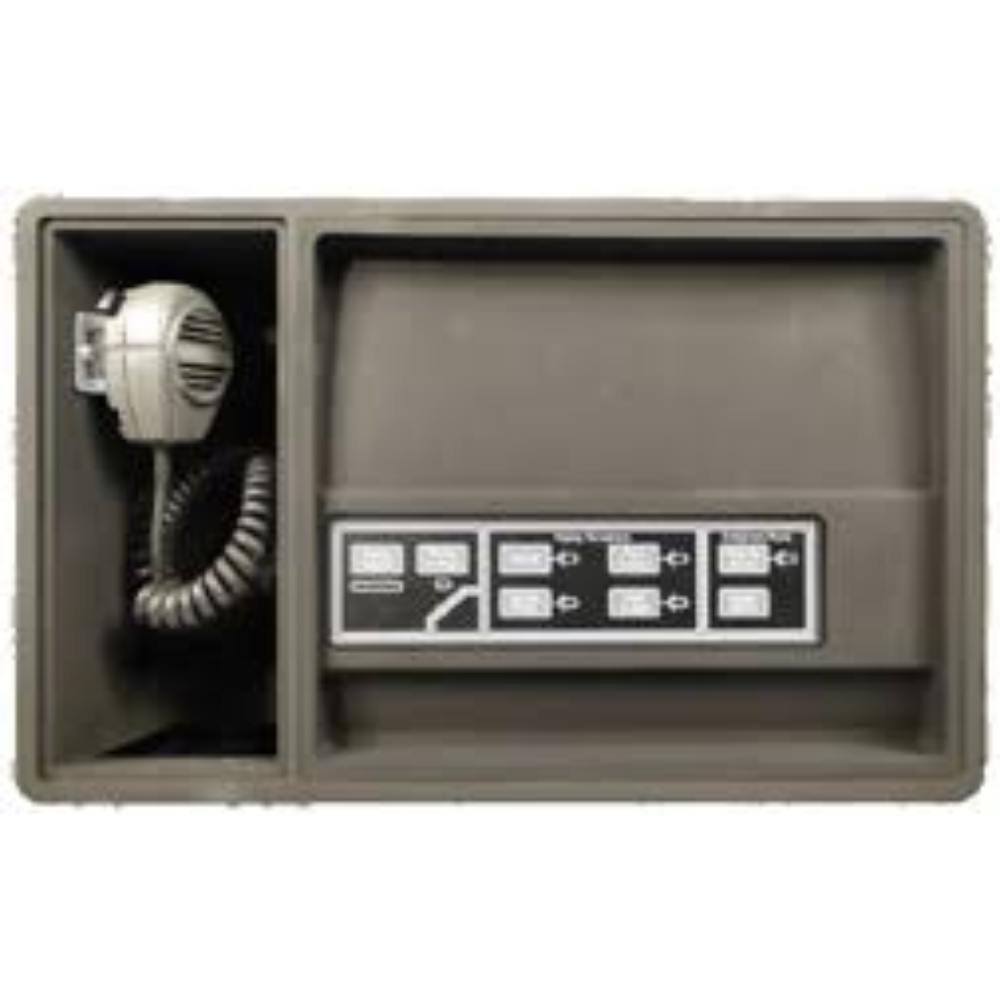

The Kidde VM-PMI Audio System Control and Paging Interface is a critical component for advanced fire alarm and emergency communication systems in complex commercial environments. Engineered for seamless integration with Kidde VM series fire alarm panels, this interface provides comprehensive audio management and emergency notification capabilities across multi-zone facilities such as educational campuses, healthcare complexes, office buildings, and industrial facilities.
Designed for professional fire alarm installers and system integrators, the VM-PMI enables centralized audio control and paging functionality within addressable fire alarm networks. Its robust architecture supports sophisticated emergency communication protocols, allowing precise signal routing, volume management, and prioritized messaging during critical alarm scenarios.
Key Features
- Full compatibility with Kidde VM series fire alarm control panels and addressable systems
- Integrated paging microphone with configurable zones and priority levels
- Supports multiple audio input sources and independent zone routing
- Comprehensive interconnect cabling and mounting hardware included
- Compliant with NFPA 72 emergency communication system requirements
- UL 464 listed for commercial fire alarm notification appliances
Specifications
- Input Voltage: 24VDC supervised circuit
- Standby Current: < 100mA
- Alarm Current: < 250mA
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Dimensions: 8.5″ x 6.25″ x 2.25″
Typical installation contexts include large commercial facilities requiring distributed emergency communication, such as multi-story office complexes, educational institutions, healthcare facilities, manufacturing plants, and transportation hubs. The VM-PMI provides critical infrastructure for coordinated emergency response, enabling clear, prioritized audio messaging during fire events, evacuation procedures, or other urgent notifications.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 10 lbs |
|---|---|
| Dimensions | 22 × 15.5 × 10 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Replacement Part |
