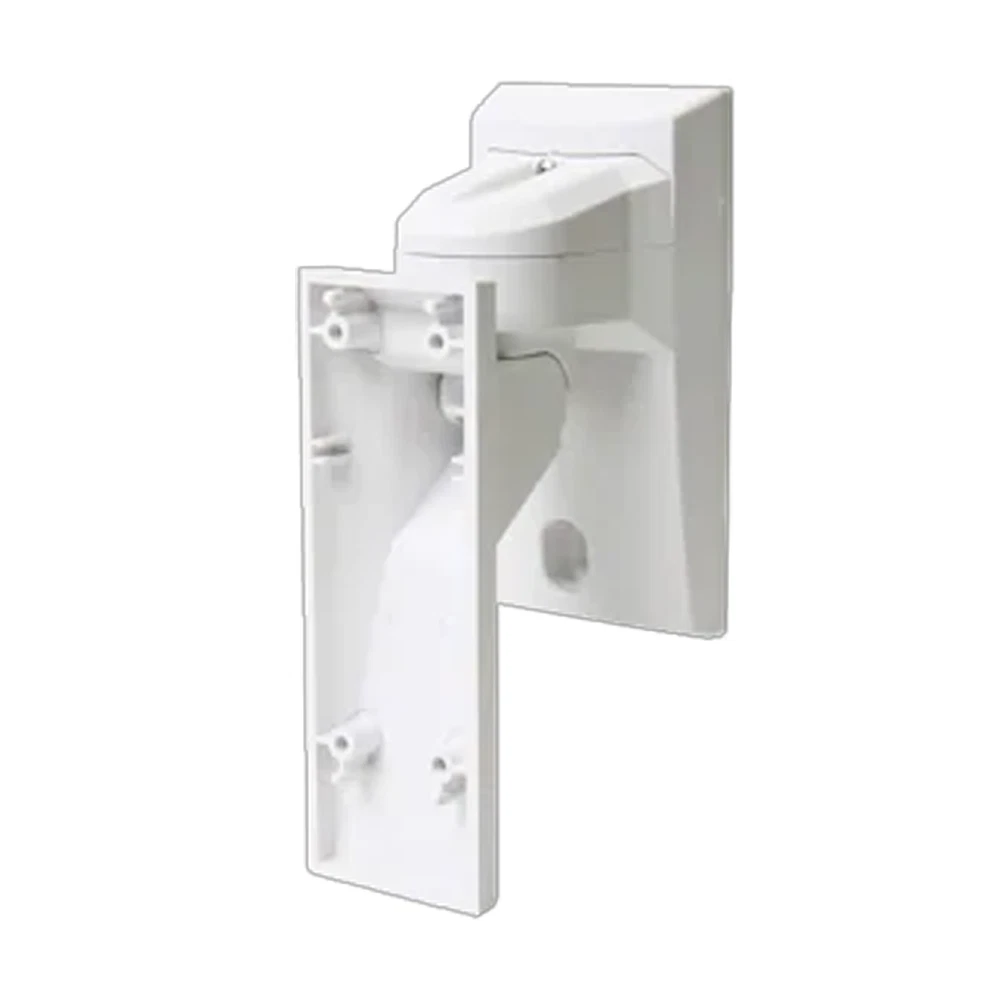

DSC (LC-B1-15X) Optional bracket for the lc-151 outdoor motion detector

The DSC LC-B1-15X is an optional outdoor mounting bracket for the LC-151 dual-technology outdoor motion detector. It lets installers tilt the LC-151 horizontally or vertically to fine-tune the protected zone.

The LC-151 itself is a security/intrusion outdoor PIR-plus-microwave motion detector. Therefore, the LC-B1-15X bracket is a security accessory — not a fire alarm component.

Installers use the bracket to set the detection range by tilting the detector. As a result, the LC-151 can be aimed to cover the actual perimeter geometry of the site. Furthermore, the bracket handles outdoor exposure alongside the IP55-rated detector it carries.

DSC LC-B1-15X Compatibility

• Designed specifically for the DSC LC-151 outdoor PIR + microwave motion detector
• Allows horizontal and vertical tilt adjustment for aiming the detection beam
• Used to set the detection range of the LC-151 between 5 m and 15 m (16 ft to 49 ft)
• Suited to perimeter, exterior wall, and outdoor approach installations

About the Companion LC-151 Detector

The LC-151 uses dual-technology sensing. Specifically, it combines a single PIR element with X-band microwave at 9.9 GHz, 10.525 GHz, or 10.687 GHz. In addition, it offers pet immunity up to 33 lb without a lens — or 80 lb using the supplied LC-F1-15X pet immunity lens.

Important Application Note

The LC-B1-15X is an intrusion-detector mounting bracket. Therefore, do not use it on fire alarm initiating devices. For fire detector mounting accessories, use parts listed for the fire panel and detector in question.

Order or Get Application Help

Since 2002, Life Safety Consultants has stocked DSC intrusion accessories. To order the DSC LC-B1-15X or confirm the LC-151 aiming geometry, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
