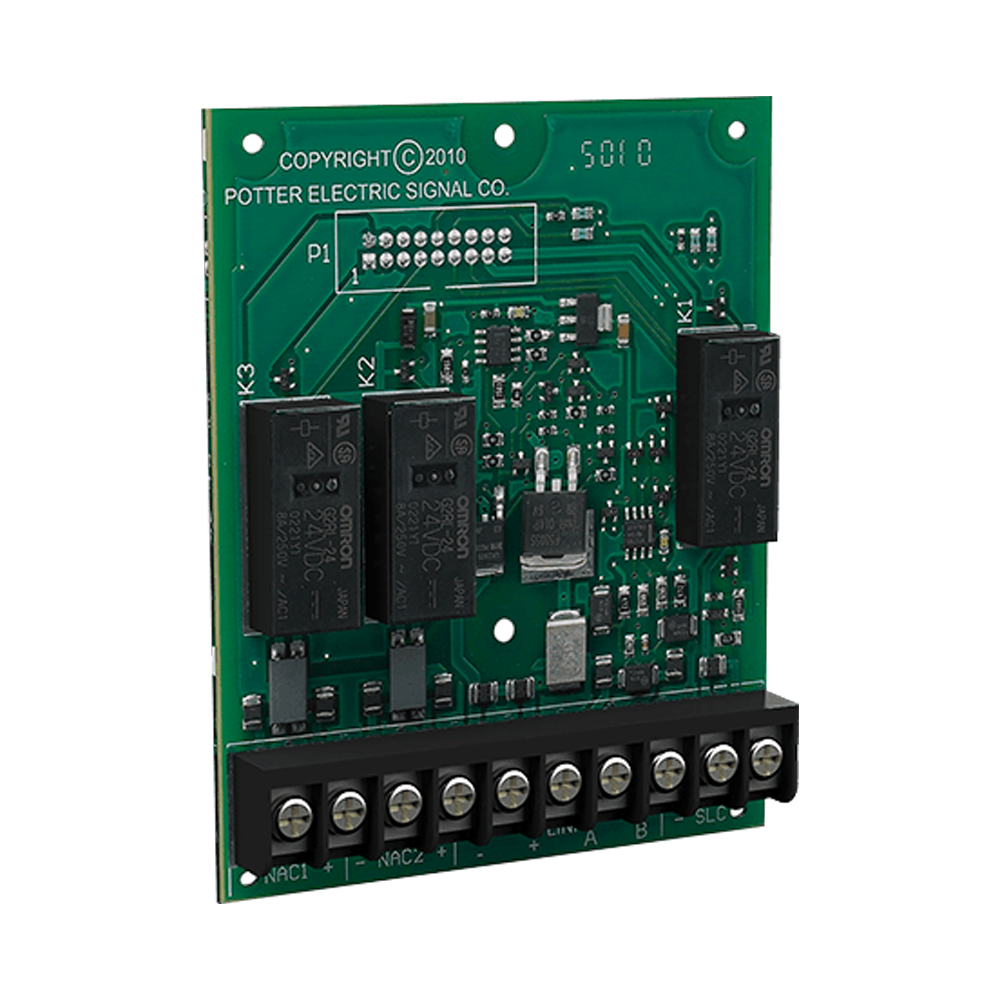

The POTTER CA-6075 is a Class A Expander for Potter addressable fire alarm control panels. First, it converts key panel circuits from Class B to Class A wiring. Specifically, it covers the built-in SLC loop, the P-Link communication bus, and two onboard NAC circuits. As a result, technicians gain redundant, fault-tolerant signaling paths. This module works with the AFC, ARC, IPA, and PFC series panels.
How the POTTER CA-6075 Works
The CA-6075 mounts directly to the framework inside the fire alarm control panel. Then the installer enables Class A operation through the Potter Fire Panel Programmer software. Notably, Class A operation can be selected independently for the P-Link and SLC circuits. Therefore, you can match redundancy to each project’s wiring plan.
Specifications
- Standby current: 12 mA
- Alarm current: 44 mA
- Operating temperature: 32°F to 120°F (0°C to 49°C)
- Humidity: 10% to 93% non-condensing at 86°F (30°C)
- Compatible panels: Potter AFC, ARC, IPA, and PFC series
- Converts SLC, P-Link, and two NAC circuits to Class A
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 8 × 5.5 × 3 in |
| Condition | New |
| Manufacturers | Potter |
| Part Type | Heat Detector |
