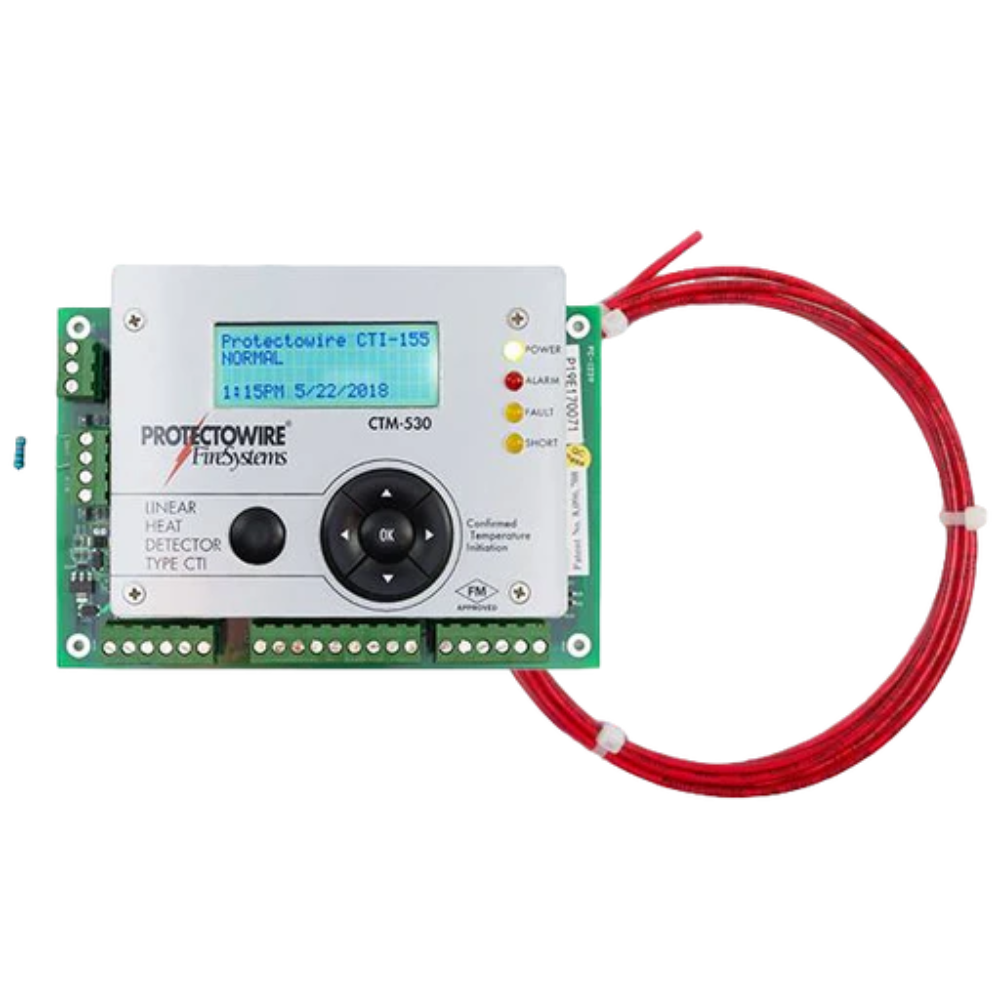

The Protectowire CTM-530E is a CTI interface module in a NEMA-4X enclosure. It connects a fire alarm control panel to Protectowire Type CTI linear heat detector. As a result, one supervised zone of CTI detection ties into the host panel.
The module uses Protectowire’s patented Confirmed Temperature Initiation technology. First, it monitors the CTI detector for a short. Then, it measures the temperature at that short. Therefore, it tells a true thermal alarm apart from a mechanical short circuit.
Detection and Outputs
The detection circuit can be field-wired for Class A (Style D) or Class B (Style B). In addition, it supports up to 4,000 ft (1,220 m) of CTI detector. An integrated Alarm Point Location Meter shows the distance to the alarm in feet or meters.
Three sets of Form C (SPDT) contacts report Alarm, Trouble, and Short Fault. Also, two 4-20mA outputs cover module status and alarm point location. Furthermore, Modbus over RS-485 and a 64-event history log are built in.
Protectowire CTM-530E Specifications
- Function: Single-zone interface module for Protectowire Type CTI linear heat detector
- Enclosure: NEMA-4X (IP66), 8″H x 6″W x 4″D, clear full-view door
- Detector capacity: up to 4,000 ft (1,220 m) of CTI detector
- Circuit: field-selectable Class A (Style D) or Class B (Style B)
- Power: regulated 12-24 VDC, 1.6 W standby / 2.0 W alarm
- Relays: 3 sets Form C (SPDT) – Alarm, Trouble, Short Fault; rated 1 A @ 24 VDC resistive
- Display: 4×20 backlit LCD; integrated Alarm Point Location Meter
- Communications: Modbus over RS-485; two 4-20mA outputs; 64-event history (FIFO)
- Ambient: -20° to 120°F (-29° to 49°C); 95% non-condensing humidity
- Option: intrinsically safe version (CTM-530E-I) for hazardous locations
Order from Life Safety Consultants
The CTM-530E suits installs where the module mounts outside the panel or near the hazard. Its NEMA-4X enclosure handles tougher environments. Also, Life Safety Consultants stocks CTI detectors and accessories to complete the system.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 1.6 lbs |
|---|---|
| Dimensions | 7 × 8 × 4 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Interface Module |
