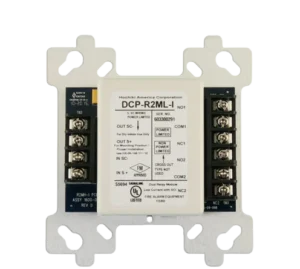

The Hochiki R2ML-I is a DCP-addressable dual-relay module with a built-in short-circuit isolator. It provides two independently controlled Form C contacts per SLC address.
First, the R2ML-I integrates the same dual low-current relays as the R2ML. Then it adds an SLC isolator that opens during a downstream short. As a result, a single short does not disable the rest of the loop.
Hochiki R2ML-I Isolator Behavior
Specifically, a yellow LED on the faceplate lights when the isolator trips. In addition, the SCI on-resistance is 40 milliohm max during normal operation. However, the isolator returns automatically once the short clears.
Hochiki R2ML-I Specifications
- SLC supply voltage (S-SC): 25.3 to 39 VDC
- Contacts: 2 independently configurable Form C, per SLC address
- Contact rating: 2 A at 30 VDC; 0.5 A at 120 VAC
- Status indicator: bi-color LED (status), yellow LED (short-circuit)
- SCI on-resistance: 40 milliohm max
- Loop type: Class A or Class B SLC, up to 127 devices per loop
- Dimensions: 4.2″W x 4.7″H x 1.4″D
- Mounting: 4″ square electrical box
- Operating temperature: 32 to 120 degrees F
- Listings: UL Listed
Typical Applications
Furthermore, the R2ML-I suits the same low-current auxiliary duties as the R2ML. Also, the integrated isolator removes the need for a separate DCP-SCI device adjacent to the module. Therefore, both panel space and SLC address count benefit.
Order the Hochiki R2ML-I
Life Safety Consultants stocks the Hochiki R2ML-I alongside compatible SLC accessories. To order or confirm panel compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 6.5 × 6.5 × 3 in |
| Condition | New |
| Manufacturers | Hochiki |
| Part Type | Relay Module |
