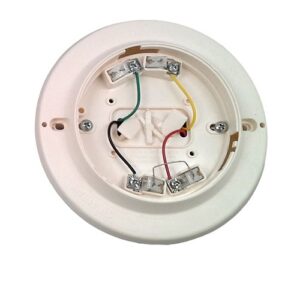

The Siemens ADB-11 is an audible fire detector base for conventional Series 11 detectors. First, it combines a standard detector base with a built-in piezoelectric sounder. As a result, it produces a local audible alarm right at the detector.
The ADB-11 carries Siemens part number 500-096117. In addition, it installs in the same footprint as a standard Series 11 base. Therefore, it adds local notification without a separate appliance.
Siemens ADB-11 Operation
A conventional zone of the control panel powers the base. On alarm, circuit ground reaches the ADB-11 through the base contact. As a result, the piezoelectric device activates and produces an 85 dB local signal.
Typical Applications
The ADB-11 suits areas that need localized audible annunciation. For example, hotels, motels, apartments, condominiums, and dormitory rooms. In addition, it works well in equipment rooms and remote spaces without dedicated horn/strobe coverage.
Order the Siemens ADB-11
Life Safety Consultants stocks genuine Siemens ADB-11 audible bases. To order or confirm compatibility, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
Additional information
| Weight | .5 lbs |
|---|---|
| Dimensions | 6 × 6 × .5 in |
| Part Type | Base, Detector Base |
| Manufacturers | Siemens |
| Compatible Panels | MXL, MXLV, FireFinder XLS, Sinteso |
| Compatible Bases | Siemens 11-series detector heads |
| Cross Reference | 500-094153, ADB11 |
| Base Type | Audible Detector Mounting Base |
| Integrated Device | Sounder/Horn |
| Head Compatibility | Siemens 11-series |
| Part Number | 500-094153 |
| Mounting | Standard electrical box |
