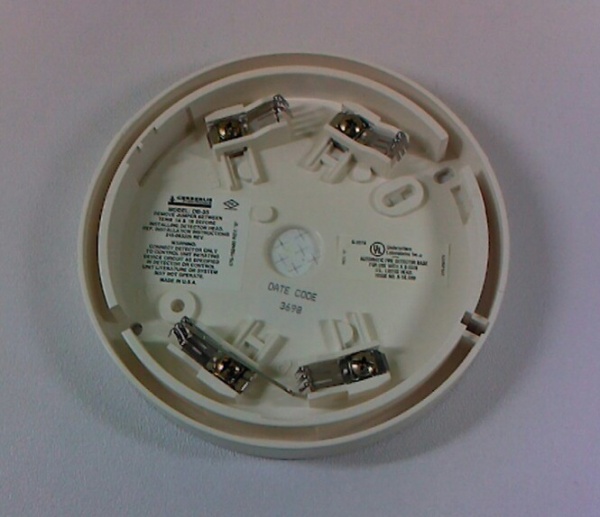

The Siemens DB-3S is a low-profile fire detector mounting base. It is designed for installations where ceiling clearance is restricted. As a result, contractors can mount detectors in drop ceilings, plenums, and tight mechanical spaces without violating the air-gap clearance below the detector head.
The DB-3S accepts compatible Siemens detector heads via a twist-lock plug-in connection. Therefore, swapping a detector head for service does not require rewiring. Catalog reference: 595-381804.
Siemens DB-3S Key Features
- Reduced-height design for tight ceiling clearance applications
- Plug-in (twist-lock) detector head interface
- Standard electrical box mounting footprint
- Siemens part number 595-381804
Typical Applications
Use the DB-3S where a full-profile base would protrude into a return-air plenum, conflict with a drop-ceiling grid, or violate clearance below ductwork. In addition, it suits retrofits where the existing ceiling allows only a slim mounting surface.
Compatibility Note
The DB-3S is part of the legacy Siemens / FCI 11-Series detector lineup. Therefore, confirm fit against your specific Siemens detector head before ordering. Our team can verify the right base for your detector model.
Order or Get Application Help
Life Safety Consultants has supplied Siemens fire alarm parts since 2002. To order the Siemens DB-3S or confirm detector head compatibility, call 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | .25 lbs |
|---|---|
| Dimensions | 6 × 6 × .5 in |
| Part Type | Base, Detector Base, Mount |
| Manufacturers | Siemens |
| Compatible Panels | MXL, MXLV, FireFinder XLS, Sinteso |
| Compatible Bases | Siemens 11-series detector heads (OSI-11, DH-11, HI-11, etc.) |
| Cross Reference | DB-3S |
| Base Type | Low-Profile Detector Mounting Base |
| Mounting | Standard electrical box |
| Head Compatibility | Siemens 11-series |
| Key Feature | Reduced height for tight clearance |
