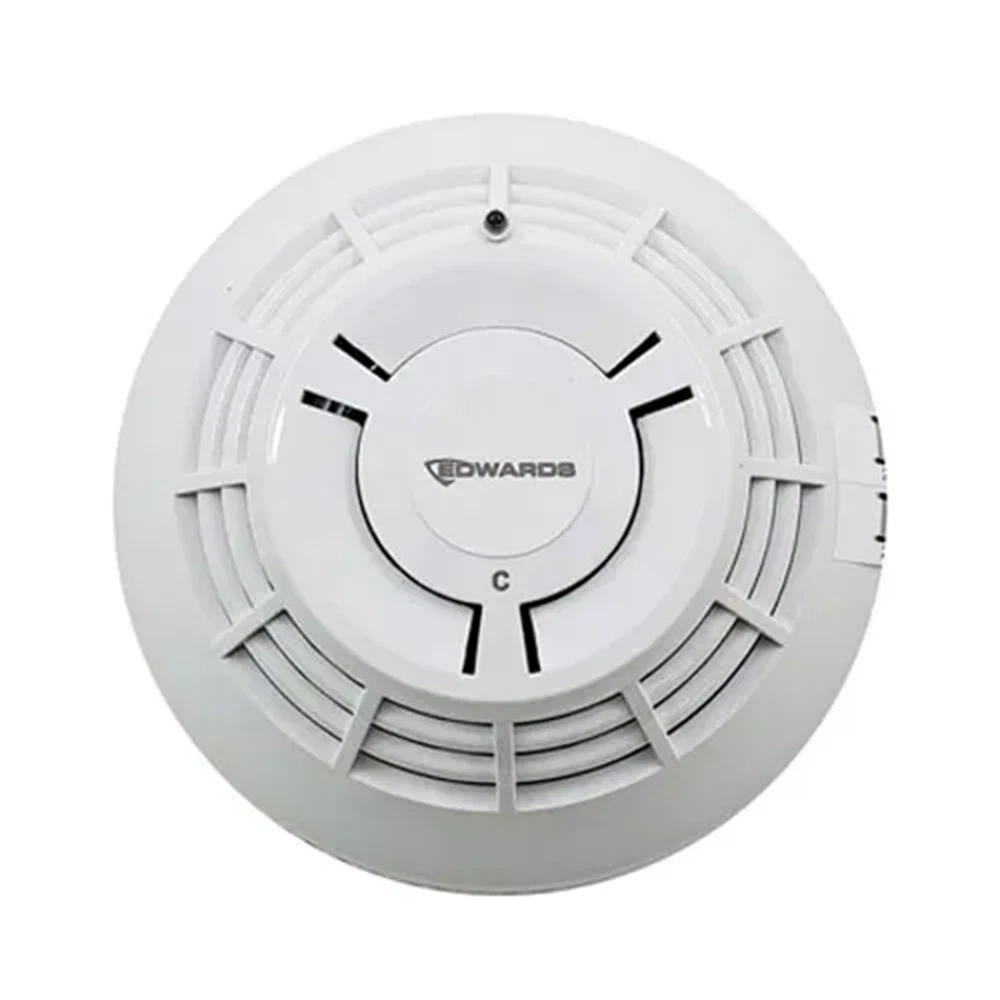

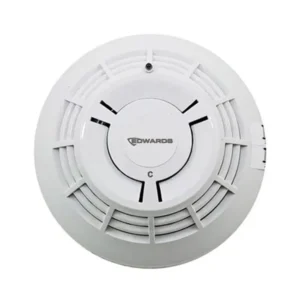

The Edwards SIGA-COD Intelligent Carbon Monoxide Detector represents advanced detection technology specifically engineered for comprehensive commercial life safety systems. Designed for integration with addressable fire alarm panels, this detector provides precise, real-time carbon monoxide monitoring in complex commercial environments such as office buildings, hospitality facilities, educational campuses, and healthcare institutions.
Utilizing advanced electrochemical sensing technology, the SIGA-COD delivers exceptional sensitivity and reliability in CO detection. Its intelligent addressable design enables direct communication with compatible Edwards control panels, allowing for pinpoint location identification and immediate response protocols. The detector’s robust engineering ensures consistent performance across diverse environmental conditions, making it a critical component in comprehensive fire and life safety infrastructure.
Professional fire alarm technicians will appreciate the SIGA-COD’s seamless integration capabilities with existing Edwards intelligent signaling line circuits (SLC), supporting sophisticated multi-sensor detection strategies in complex commercial installations.
Key Features
- Addressable intelligent CO detection with precise location reporting
- Fully compatible with Edwards intelligent fire alarm control panels
- Electrochemical sensor technology with enhanced accuracy and response
- UL 268 and UL 464 listed for commercial fire alarm applications
- NFPA 72 compliant design with flexible mounting options
- Low-profile architectural white finish for discrete installation
Specifications
- Operating Voltage: 15-32 VDC
- Standby Current: 250 µA typical
- Alarm Current: 6 mA maximum
- Temperature Range: 32°F to 100°F (0°C to 38°C)
- Humidity Range: 10% to 93% non-condensing
- Dimensions: 6.0″ diameter x 2.0″ depth
Recommended installation contexts include commercial office spaces, hospitality environments, educational facilities, healthcare complexes, and any commercial structure requiring comprehensive carbon monoxide monitoring integrated with existing fire alarm infrastructure.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 5 × 3.5 × 3 in |
| Condition | New |
| Manufacturers | Edwards |
| Part Type | Replacement Part |
