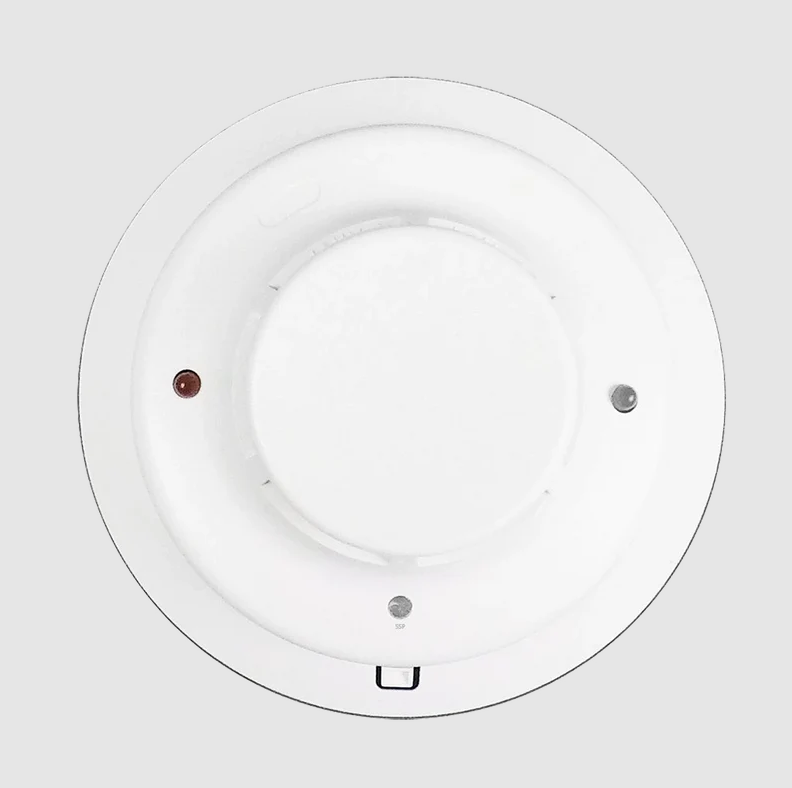

The System Sensor 4WTA-B is a four-wire i3 photoelectric smoke detector with a thermal sensor and an integral sounder. First, it detects smoke through its photoelectric chamber. In addition, it adds a fixed 135°F heat sensor and a built-in audible sounder.
The “A” in the model name marks the onboard sounder. Therefore, the detector can produce a local temporal alarm tone at the device. As a result, it supports single-station-style local notification within a conventional i3 system.
System Sensor 4WTA-B detection and sounder
This detector belongs to the conventional i3 line, not an addressable platform. Also, i3 drift compensation and smoothing help reduce nuisance alarms. Furthermore, the detector signals when service or cleaning is due.
Specifications
Operating voltage is 12/24V nominal (8.5 to 35 VDC). Also, average standby current is about 50 µA. Furthermore, the operating temperature range is 32°F to 120°F (0°C to 49°C).
- Four-wire conventional i3 photoelectric smoke detector
- Fixed 135°F thermal sensor
- Integral sounder for local audible alarm
- Drift compensation with maintenance signaling
- 12/24V nominal, 8.5 to 35 VDC; 32°F to 120°F operating range
Finally, the 4WTA-B suits commercial and institutional rooms needing local sound. However, verify panel compatibility before installing.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.65 lbs |
|---|---|
| Dimensions | 6 × 6 × 3 in |
| Condition | New |
| Manufacturers | System Sensor |
| Part Type | Photoelectric Smoke Detector |
