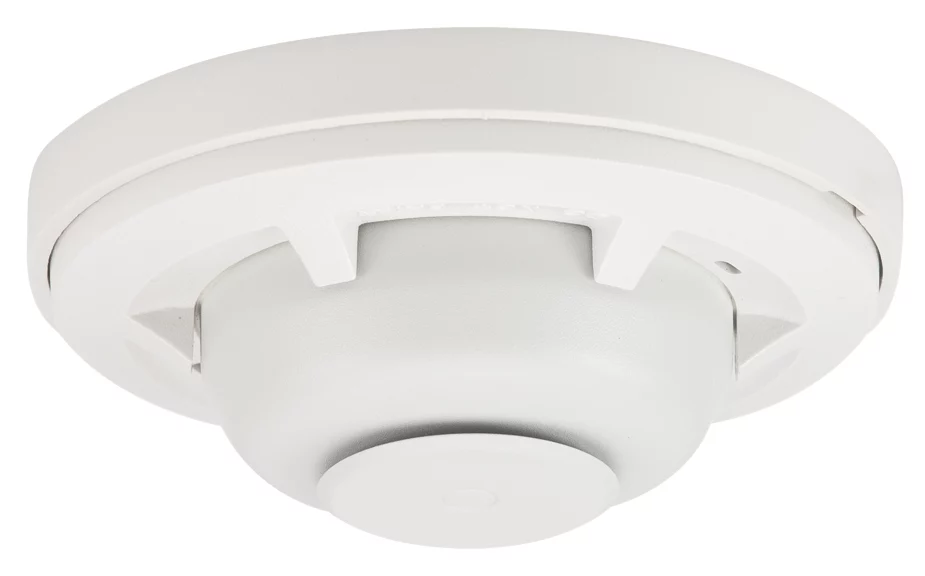

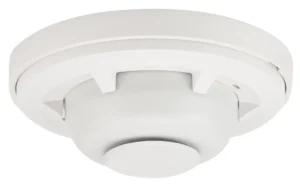

The System Sensor 5602 is a professional-grade thermal detection sensor designed for comprehensive fire protection in commercial and industrial environments. This single-circuit rate-of-rise and fixed temperature heat detector provides sophisticated thermal event monitoring for critical infrastructure, offering reliable performance in challenging ambient conditions.
Engineered for precision thermal detection, the 5602 offers dual-mode sensing capabilities that activate at 194°F (90°C) through both fixed temperature and rate-of-rise mechanisms. This sophisticated design enables early fire detection in spaces where rapid heat accumulation might indicate developing fire conditions, such as mechanical rooms, warehouses, manufacturing facilities, and HVAC system enclosures.
Key Features
- Dual detection mode: Fixed temperature (194°F/90°C) and rate-of-rise thermal sensing
- Compatible with most commercial fire alarm control panels and addressable systems
- Robust construction with corrosion-resistant base and precision thermal sensing element
- UL Listed and compliant with NFPA 72 fire alarm and signaling code requirements
- Low-profile design facilitating seamless installation in suspended ceilings and restricted spaces
- Designed for direct mounting on standard electrical boxes and compatible with multiple mounting configurations
Specifications
- Operating Temperature Range: 32°F to 100°F (0°C to 38°C)
- Humidity Tolerance: 0-93% non-condensing
- Activation Temperature: 194°F (90°C) fixed temperature
- Rate-of-Rise Sensitivity: 15°F per minute temperature increase
- Agency Listings: UL 268, UL 464, FM Approved
Ideal for protecting commercial facilities including office complexes, manufacturing plants, data centers, and institutional buildings, the System Sensor 5602 provides reliable thermal detection through its advanced sensing technology. Professional fire alarm technicians will appreciate its versatile mounting options and seamless integration with modern addressable fire alarm control panels.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 5.5 × 5 × 2 in |
| Condition | New |
| Manufacturers | System Sensor |
| Part Type | Sensor |
