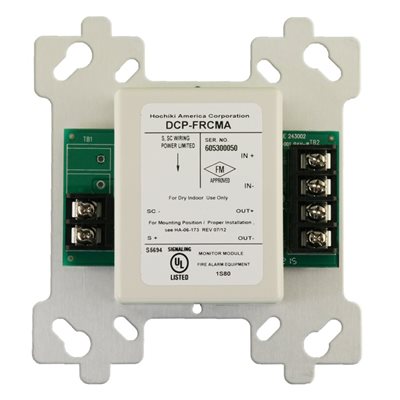

The Hochiki FRCMA is a fast response contact monitoring module for 4″ electrical boxes. First, it monitors dry-contact devices like pull stations, water flow switches, and supervisory contacts. As a result, the panel sees a change of state almost immediately when the contact trips.
Furthermore, the FRCMA runs on Hochiki’s Digital Communications Protocol (DCP). Therefore, it does not need a separate 24 VDC power source — the SLC powers it.
Hochiki FRCMA Key Features
- Single input contact monitoring module
- Operates on Class A or Class B SLC loop
- Programmable for Normally Open (NO) or Normally Closed (NC) contacts in Class B
- Class A monitors NO contacts only
- Up to 127 modules per Hochiki DCP loop
- Bi-colored indicating LED shows module status
- Electrically programmable address stored in onboard EEPROM
- Plastic faceplate included; LED visible through the faceplate
- Accepts up to 14 AWG wire
- UL 864 Listed
Specifications
- Supply voltage (S-SC): 25.3 to 39 VDC
- Average current: 630 µA typical / 6.3 mA alarm
- EOL device: 0400-03180 (supplied)
- Dimensions: 4.2″ W x 4.7″ H x 1.4″ D
- Ambient temperature: 32°F to 120°F (0°C to 49°C)
- Relative humidity: 90% non-condensing
- Mounting: 4″ square or double-gang electrical box
- Listings: UL 864, CSFM 7300-0410:150
Order or Get Application Help
For pricing or panel-compatibility help on the Hochiki FRCMA, call Life Safety Consultants at 1-888-557-0558. You can also email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 3 × 7 × 7 in |
| Condition | New |
| Manufacturers | Hochiki |
| Part Type | Pull Station |
