Siemens (HZM) Conventional zone module

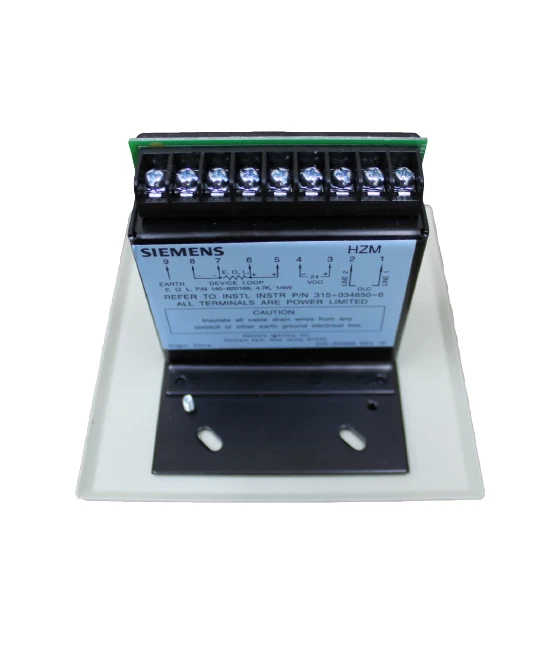

The Siemens HZM (part# 500-034850) is a remote conventional zone module for intelligent fire alarm systems. It connects a single zone of conventional devices to an addressable analog loop. As a result, one system can combine intelligent and conventional devices with far less wiring.

First, the HZM powers up to 15 two-wire ionization or photoelectric smoke detectors. These include the Siemens ‘3’-series and ’11’-series detectors. Alternatively, it can power one PBA-1191 beam detector with no additional devices. In addition, it monitors an unlimited number of alarm-causing shorting devices. For example, waterflow switches, thermal detectors, and manual stations all qualify.

Each HZM occupies one address on the DLC device loop circuit. Also, each module accepts a custom 32-character alphanumeric message. A multicolor LED shows status through the cover plate. Specifically, red means alarm, yellow means trouble, and green means normal.

Key Features of the Siemens HZM

• Connects one conventional initiating-device circuit to an addressable loop
• Powers up to 15 Siemens ‘3’- or ’11’-series two-wire smoke detectors
• Powers one PBA-1191 beam detector (with no other devices on the circuit)
• Unlimited shorting devices per circuit (waterflow switches, heat detectors, manual stations)
• No mechanical address programming — programmed with the Siemens DPU Program/Test Unit
• Alarm-verification and WalkTest capability
• Class A (Style D) or Class B (Style B) wiring; circuits power-limited per NEC 760
• Includes metal cover plate; multicolor status LED
• UL 864 9th Edition Listed and ULC Listed; FM, CSFM, and NYC Fire Department Approved

Specifications

• Siemens part number: 500-034850
• Maximum zone resistance: 35 ohms total
• Zone supervisory voltage range: 18–24.5 VDC
• Maximum zone current: 34 mA
• 24 VDC power input range: 18.8–28.8 VDC
• Maximum current (24 VDC power): 100 mA
• Listed for indoor dry locations, 32°F to 120°F (0°C to 49°C)

Compatibility

The Siemens HZM works with Siemens Modular panels and the FireFinder XLS. Furthermore, it supports the Siemens 50-point, 252-point, and 504-point addressable systems. Compatible detectors include the HI121, OH121, OP121, DI-3 series, DT-11, PE-3, and PE-11. Therefore, the HZM is ideal for adding conventional zones to an intelligent system economically.
