Kidde (1505-AQN5) Door holder, semi-flush, wall mount – 24-120v

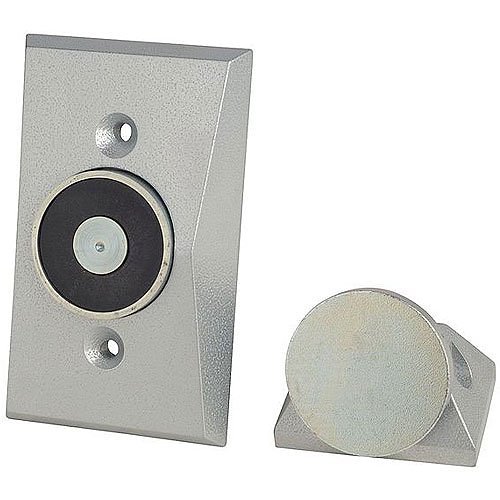

The Kidde 1505-AQN5 is a flush wall-mounted electromagnetic door holder with the SHORT catch plate, from the Edwards/Kidde 1500 Series. Specifically, it is the multi-voltage model accepting 24 VAC, 24 VDC, or 120 VAC.

First, the 1505-AQN5 mounts to a standard single-gang 2 × 4 in outlet box for concealed wiring. Then, the short catch plate engages the door armature when energized. As a result, the door is held open during normal building operation.

In addition, fail-safe release is inherent to the design. Therefore, alarm relay drop or any loss of power releases the door immediately. Furthermore, the swivel contact plate adjusts to any door angle.

Key Features of the Kidde 1505-AQN5 Flush Wall-Mount Door Holder

• Flush wall mount on standard single-gang outlet box
• SHORT catch plate variant (use 1504-AQN5 for the long catch plate)
• Multi-voltage AC/DC operation (24 VAC 60 Hz, 24 VDC, 120 VAC 60 Hz)
• ~25 lbf (111 N) nominal holding force
• Adjustable swivel contact plate with shock-absorbing nylon ball
• Silent operation, no moving parts
• Low 0.015 A current draw
• Aluminum-color baked polyester powder paint

Specifications

• Style: Flush wall mounted (short catch plate)
• Voltage: 24 VAC 60 Hz / 24 VDC / 120 VAC 60 Hz
• Current: 0.015 A
• Holding force: ~25 lbf (111 N)
• Mounting box: standard 2 × 4 in single-gang outlet box
• Ship weight: 2.0 lb (0.91 kg)
• Documented in Edwards data sheet S85001-0421 Issue 6.1

Common Accessories

• 1500-1 / 1500-2 — short fixed catch plate extensions
• 1500-7 / 1500-12 — adjustable catch plate extensions
• CS2595-5 — short replacement armature

Order or Get Application Help

Life Safety Consultants stocks the Kidde 1505-AQN5 and the full 1500 Series. To order or scope a flush-mount door layout, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.

For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
