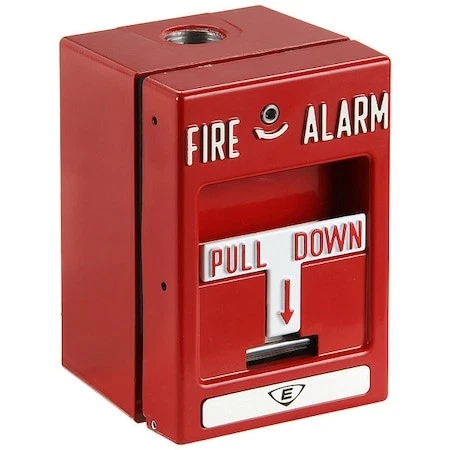

The Kidde MPSR2-SHTW-GE is a weatherproof double-action manual pull station with single-pole contacts. Specifically, the suffix codes denote SPST contacts and hex-screw reset.
In addition, double-action operation requires a deliberate lift-and-pull sequence. As a result, accidental activation drops significantly versus single-action designs.
Kidde MPSR2-SHTW-GE operation
First, the user lifts the front cover. Then, the user pulls the handle to latch the SPST contact. Finally, the station resets with a hex tool rather than a Cat 45 key.
Furthermore, screw terminals accept field wiring directly. Also, the die-cast housing carries pre-painted or plated corrosion-resistant finishes.
Environmental ratings
The enclosure is rated NEMA 4X for outdoor use. In addition, the unit carries hazardous-location listings for Class I Groups B, C, and D, Class II Groups E, F, and G, and Class III environments.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 2.4 lbs |
|---|---|
| Dimensions | 5.75 × 4.25 × 4.25 in |
| Condition | New |
| Manufacturers | Kidde |
| Part Type | Duct Detector |
