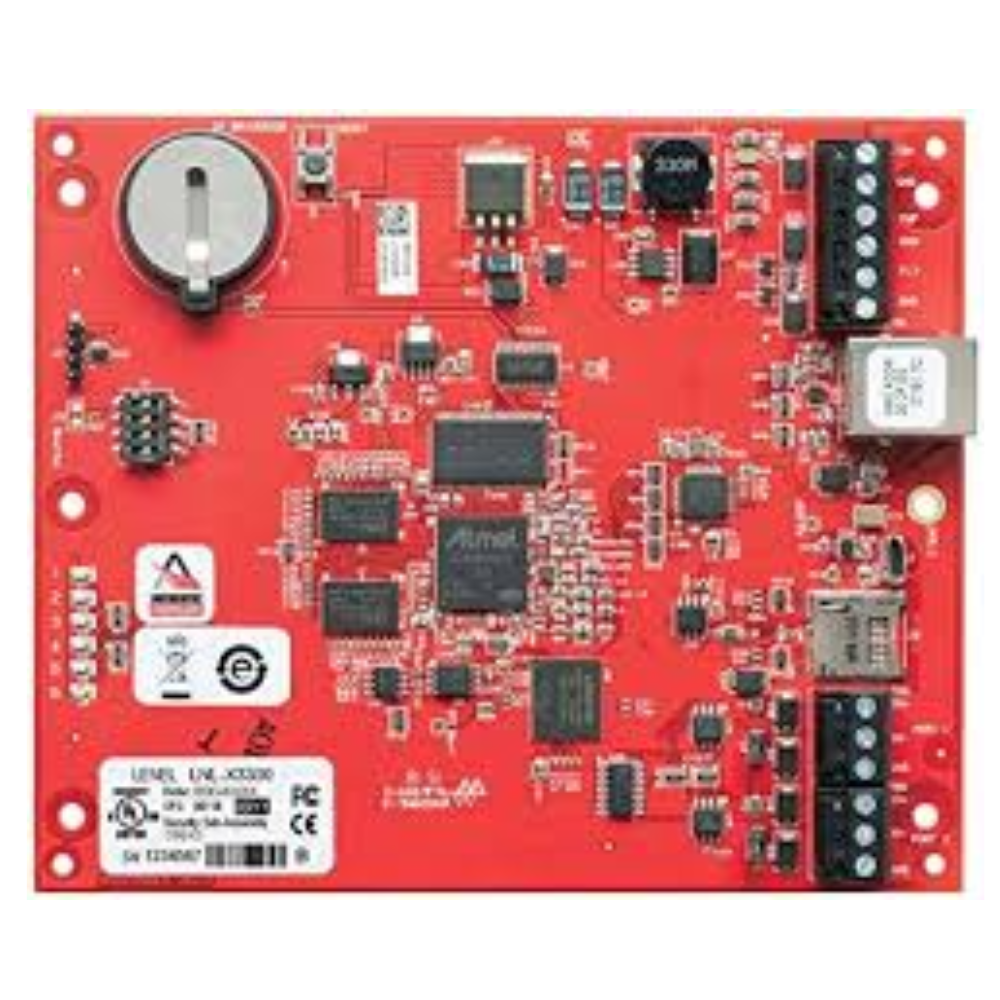

The Lenel LNL-X3300 is an intelligent system controller for the LenelS2 OnGuard access control platform. Specifically, it serves as the access control engine that manages downstream interface modules. Therefore, it forms the hub of an OnGuard control branch.
First, the controller runs on 12 to 24 VDC power. In addition, it uses a high-performance 32-bit processor. As a result, it delivers throughput far faster than traditional serial connections.
What the Lenel LNL-X3300 Manages
The controller supports up to 64 downstream devices. Furthermore, those devices include input, output, and card reader interface modules. Therefore, one board can coordinate doors, monitored inputs, and auxiliary outputs across a facility.
Key Features
- Intelligent system controller for LenelS2 OnGuard
- Powered by 12 to 24 VDC
- High-performance 32-bit processor for fast throughput
- Stores up to 500,000 cardholders in non-volatile flash memory
- Manages up to 64 downstream devices (input, output, and reader interface modules)
- Single- or dual-path host communication over on-board 10Base-T/100Base-TX Ethernet
- Micro-USB port for local connection
Specifications
- Controller type: intelligent system controller
- Input power: 12 to 24 VDC
- Processor: 32-bit
- Cardholder capacity: up to 500,000 in flash memory
- Downstream devices supported: up to 64
- Host communication: on-board 10Base-T/100Base-TX Ethernet (single or dual path); Micro-USB
Order or Get Application Help
Life Safety Consultants stocks LenelS2 intelligent system controllers for OnGuard systems. To order the Lenel LNL-X3300 or to size a controller for your device count, call 1-888-557-0558. Alternatively, email sales@lifesafetycom.com.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 0.2 × 6 × 9 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Power Supply |
