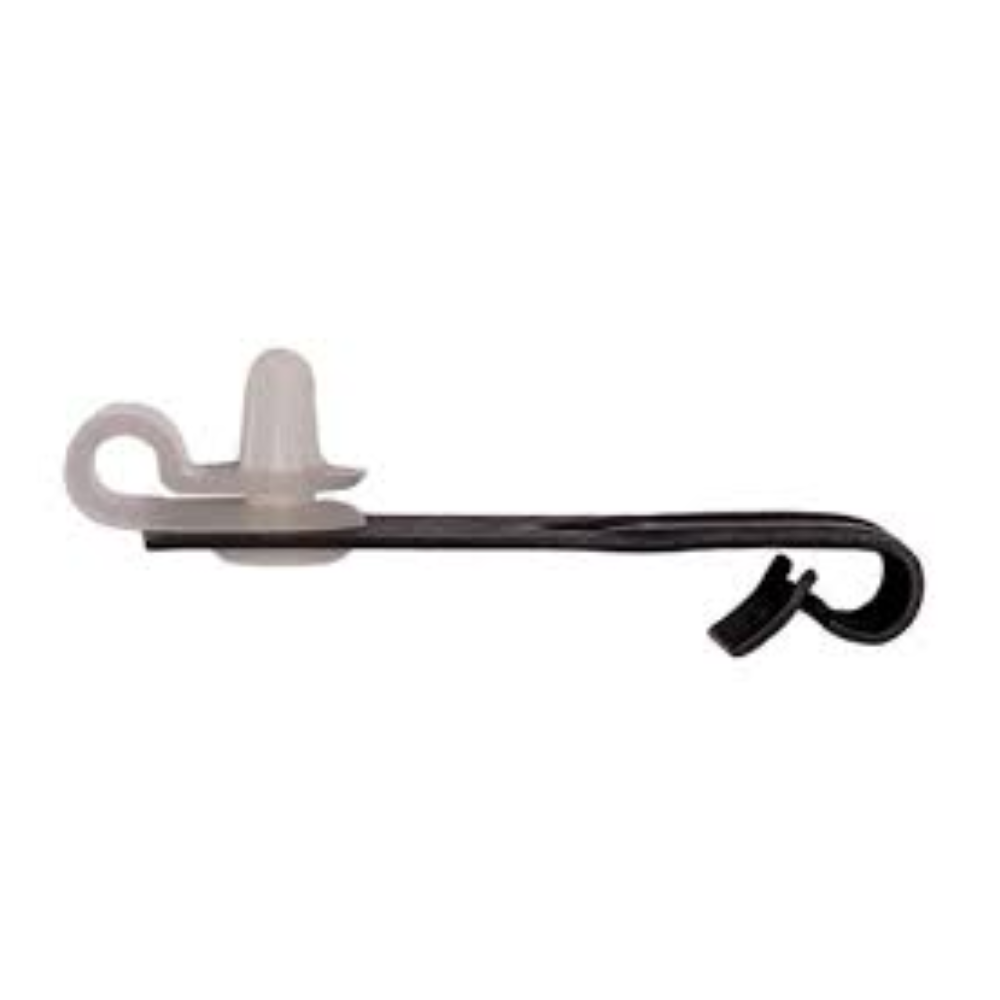

The Protectowire (CC-2N) Cable Tray Clip secures linear heat detector cable to cable tray side rails. It uses a “caddy” style steel clamp with a WAW and snap button. As a result, installers can hold the detector in the recommended wave pattern.
This clip mounts directly to the side rail of a cable tray. First, the clamp grips the rail edge. Then, the snap button locks the Protectowire cable in place. Therefore, the detector stays positioned for reliable heat sensing along its run.
Protectowire (CC-2N) Clip Specifications
The CC-2N is sized for thinner tray material. Specifically, it clamps to material from 0.06 to 0.16 inch (1.6 to 4.0 mm) thick. For thicker side rails, the companion CC-2W model is available instead.
- Type: “Caddy” style steel cable tray clamp with WAW and snap button
- Material thickness range: 0.06 to 0.16 in (1.6 to 4.0 mm)
- Mounting: Attaches to cable tray side rails; holds detector in wave pattern
- Compatible detectors: Protectowire PHSC, PLR, CTI, and Fiber Optic linear heat detectors
Order from Life Safety Consultants
The CC-2N is a core accessory for cable tray heat detection installs. Using the correct clip keeps detector spacing consistent and the run secure. In addition, Life Safety Consultants stocks Protectowire detectors and accessories together.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 2.5 × 1 × 0.5 in |
| Condition | New |
| Manufacturers | Life Safety |
| Part Type | Replacement Part |
