The Honeywell SD500-AIM is a Silent Knight addressable input module. It monitors a single initiating contact. First, it connects a dry-contact device to the addressable loop. As a result, the panel can identify that device by its own address.
What the Honeywell SD500-AIM monitors
This module suits dry-contact initiating devices. For example, it monitors pull stations and waterflow switches. In addition, it is supervised through an end-of-line resistor. Therefore, it reports both alarm closures and open-circuit wiring faults.
Specifications
- Addressable input module for Silent Knight IntelliKnight panels
- Monitors one supervised dry-contact input
- Class A (Style D) or Class B (Style B) wiring
- DIP-switch SLC addressing
- Supports up to 2,500 ft with 14 AWG wire

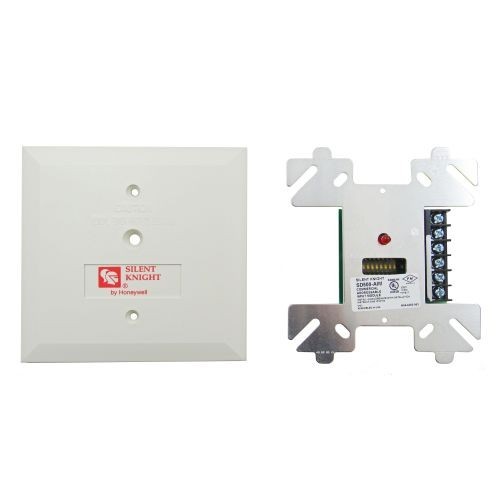

- Mounts to a 4″ square box; ivory cover with monitor LED
- UL 864 listed
The module installs quickly in a standard box. Furthermore, the visible LED confirms its monitored status. Also, for help matching it to your panel, contact our team.
For more information, contact the Life Safety Consultants team at 1-888-557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | .5 lbs |
|---|---|
| Dimensions | 4 × 4 × .5 in |
| Condition | New |
| Manufacturers | Silent Knight |
| Part Type | Pull Station |
