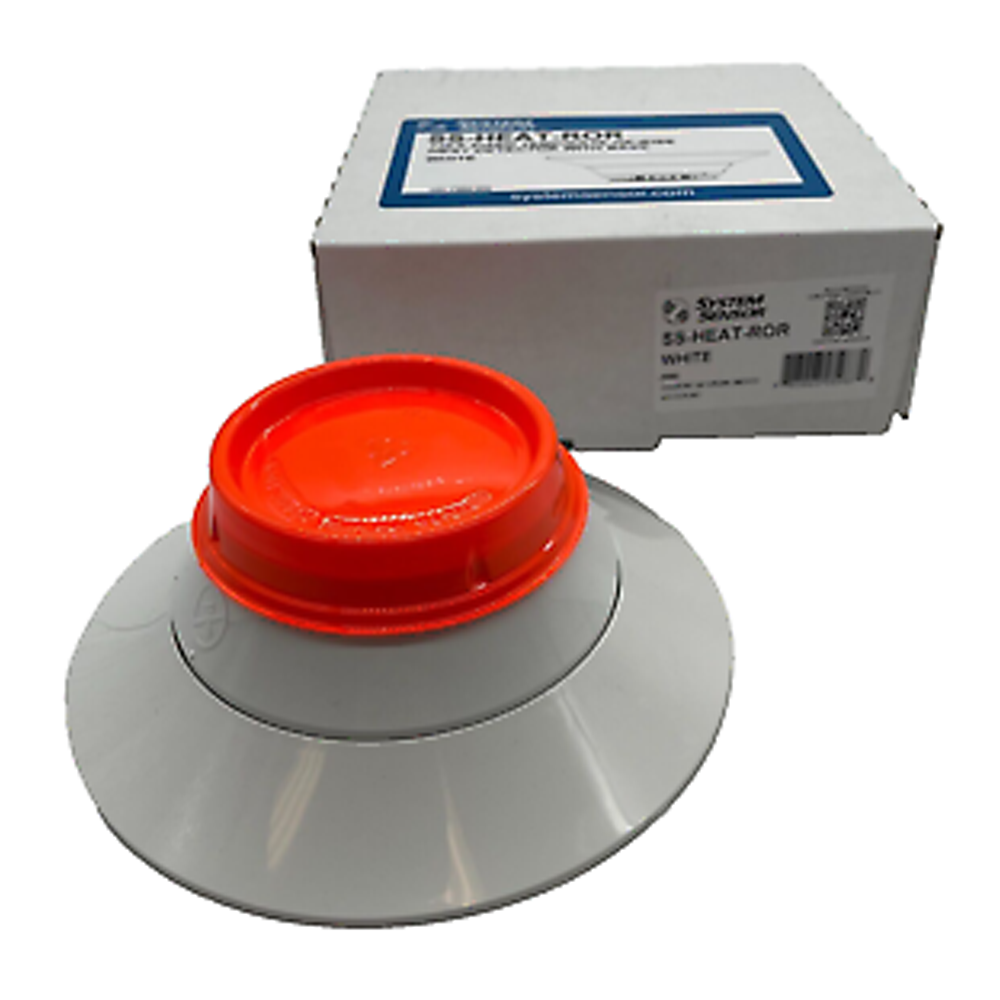

The System Sensor SS-HEAT-ROR is an intelligent, addressable thermal detector. First, it combines 135°F (57°C) fixed-temperature sensing with rate-of-rise detection. Then, rate-of-rise responds when temperature climbs about 15°F per minute. As a result, it catches both slow and fast-developing heat conditions. Importantly, this is a heat detector, not a smoke detector.
System Sensor SS-HEAT-ROR features
The SS-HEAT-ROR provides cost-effective property protection on intelligent loops. In addition, rotary address switches and point ID report the exact device location. Then, dual LEDs deliver 360-degree status and alarm visibility. Also, it supports current SK, LiteSpeed, and SS Protocol systems. Furthermore, low standby current simplifies loop power design. Because it senses heat, it suits areas where smoke detection is impractical.
- Intelligent addressable thermal detector
- 135°F (57°C) fixed temperature plus rate-of-rise
- Rate-of-rise trips near 15°F per minute
- Rotary address switches with point ID
- Dual LEDs for 360° visibility
- Supports SK, LiteSpeed, and SS Protocol
Specifications
- Voltage range: 15 to 32 VDC peak
- Operating current at 24 VDC: 200 µA
- Maximum alarm current: 2 mA at 24 VDC
- Operating temperature: −4°F to 115°F (−20°C to 47°C)
- Humidity: 10% to 93% non-condensing
- Dimensions: 2.0″ H; 4.1″ diameter in B501 base, 6.2″ in B300-6 base
- Listing: UL 521
The SS-HEAT-ROR mounts in B501 4-inch or B300-6 6-inch bases, ordered separately. However, verify panel protocol compatibility first. Therefore, consult the addressable detector compatibility chart for your control panel.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 6.5 × 6.5 × 3 in |
| Condition | New |
| Manufacturers | System Sensor |
| Part Type | Photoelectric Smoke Detector |
