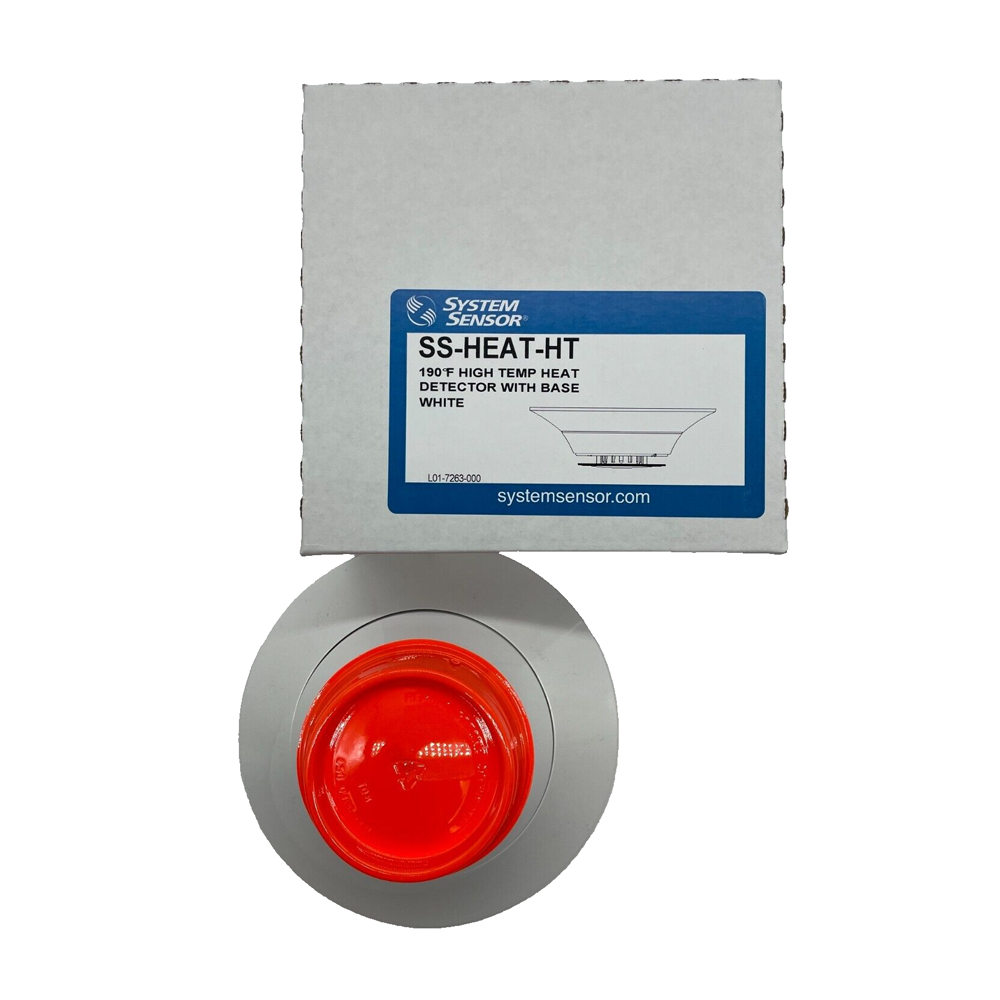

The System Sensor SS-HEAT-HT is an intelligent, addressable high-temperature heat detector. First, it provides fixed high-temperature detection at 190°F (88°C). Then, this higher setpoint suits hot areas that would nuisance-trip standard detectors. As a result, it protects boiler rooms, attics, and similar high-heat spaces. Importantly, this is a fixed high-temperature heat detector, not a rate-of-rise model.
System Sensor SS-HEAT-HT features
The SS-HEAT-HT delivers intelligent property protection with a UL 521 listing. In addition, rotary address switches and point ID identify each device location. Then, dual LEDs provide 360-degree status and alarm visibility. Also, it supports current SK, LiteSpeed, and SS Protocol systems. Furthermore, low standby current keeps loop power planning simple. Because it senses only high heat, it avoids false alarms in hot environments.
- Intelligent addressable high-temperature heat detector
- Fixed detection at 190°F (88°C)
- Rotary address switches with point ID
- Dual LEDs for 360° visibility
- Supports SK, LiteSpeed, and SS Protocol
- UL 521 listed
Specifications
- Voltage range: 15 to 32 VDC peak
- Operating current at 24 VDC: 200 µA
- Maximum alarm current: 2 mA at 24 VDC
- Operating temperature: −4°F to 150°F (−20°C to 66°C)
- Humidity: 10% to 93% non-condensing
- Dimensions: 2.0″ H; 4.1″ diameter in B501 base, 6.2″ in B300-6 base
- Listing: UL 521
The SS-HEAT-HT installs in B501 4-inch or B300-6 6-inch bases, ordered separately. However, confirm panel protocol compatibility before ordering. Therefore, review the addressable detector compatibility chart for your control panel.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.5 lbs |
|---|---|
| Dimensions | 6.5 × 6.5 × 3 in |
| Condition | New |
| Manufacturers | System Sensor |
| Part Type | Photoelectric Smoke Detector |
