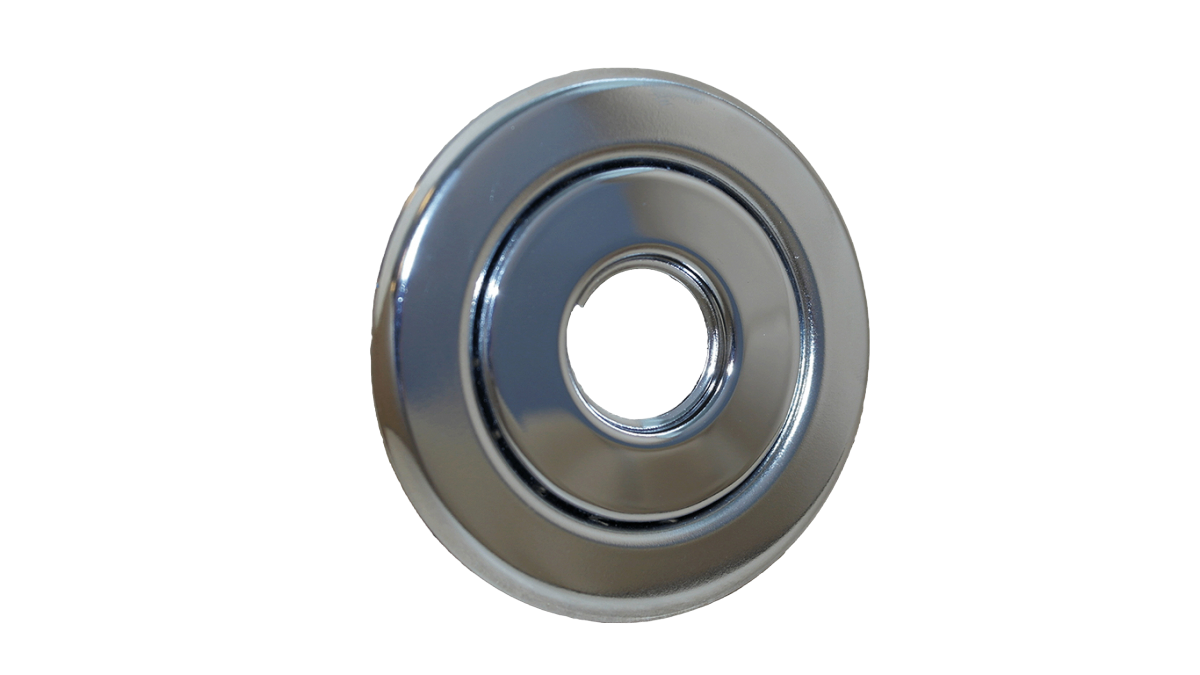

The Tyco (567159010) escutcheon is a Style 15 recessed cover plate for 1/2 inch fire sprinklers. Specifically, it hides the clearance gap around a recessed sprinkler. As a result, the finished ceiling looks clean and professional.
This version uses a chrome-plated steel finish. In addition, it is a two-piece, non-split assembly. Therefore, it allows vertical adjustment during installation.
Tyco (567159010) escutcheon specifications
- Type: Style 15 two-piece recessed escutcheon
- Finish: chrome-plated steel
- Sprinkler orifice: 1/2 inch
- Outer diameter: 2-7/8 inch
- Inner diameter: 1-7/8 inch
- Depth: 1 inch
- Vertical adjustment: up to 5/8 inch
- Tyco part number: 56-715-9-010
The escutcheon threads onto the sprinkler after installation. However, you must shut off the water and remove the sprinkler first. Then fit the escutcheon and reinstall the sprinkler. Finally, confirm compatibility with your Tyco sprinkler model before ordering.
For more information, contact the Life Safety Consultants team at (888) 557-0558, or email us at: sales@lifesafetycom.com
Additional information
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.2 × 3 × 3 in |
| Condition | New |
| Manufacturers | Tyco |
| Part Type | Replacement Part |
